Front bezel
1. Prepare the computer for disassembly (Preparation for disassembly on page 19)
2. Remove the access panel (Access panel on page 20)

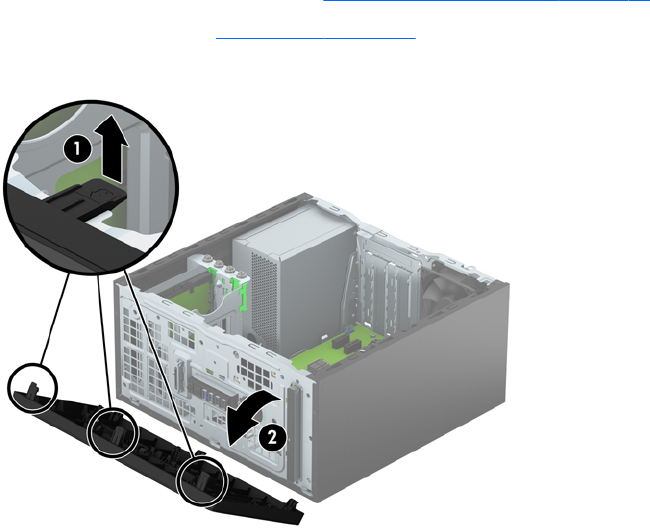

3. Lift up the three tabs on the side of the bezel (1), and then rotate the bezel o the chassis (2).
To replace the front bezel, reverse the disassembly procedures.
Front bezel 21
