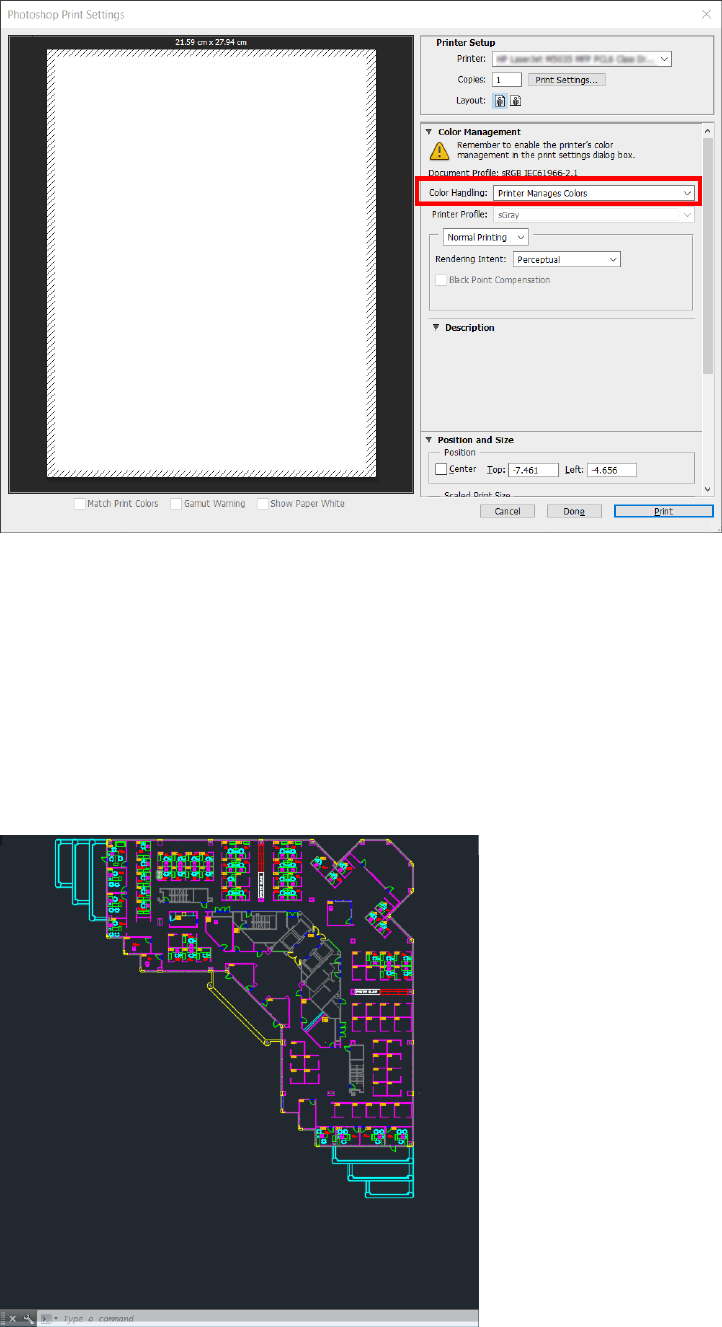

2. In the Color Management section, set the Color Handling option to Printer Manages Colors.
3. In the driver’s Color tab, ensure that the color management option is Printer managed colors. This is the
correct option because you have already selected Printer Manages Colors in Photoshop.
Print a project
This section demonstrates how to print a project from AutoCAD.
Using Autodesk AutoCAD
1. The AutoCAD window can show a model or layout. Normally a layout is printed rather than the model.
92 Chapter 9 Practical printing examples ENWW
