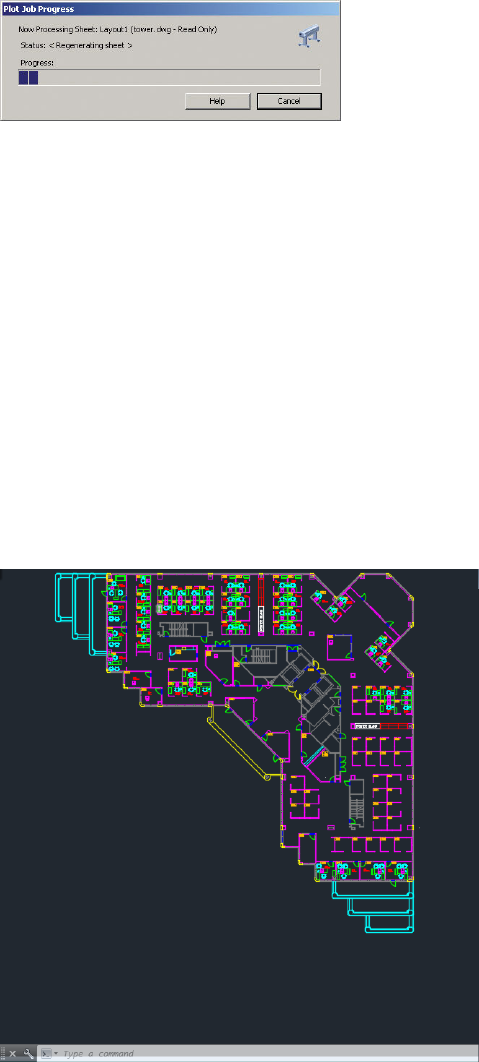

12. When you have clicked the OK button in the Plot window, the printer will construct a print preview.
Using clip contents by margins
You can select this margins option from Advanced settings > Paper > Layout/Margins > Print with margins >
Layout > Clip contents by margins.
Use this option when the contents to be printed have white borders and a size equal to that of the paper you
have selected. The printer will use the white border for its margins and you will get a page of size equal to that
which is selected in the driver.
Print a presentation
This section demonstrates how to print a presentation from AutoCAD and from Photoshop.
Using Autodesk AutoCAD
1. Open the AutoCAD le and select a layout.
ENWW Print a presentation 95
