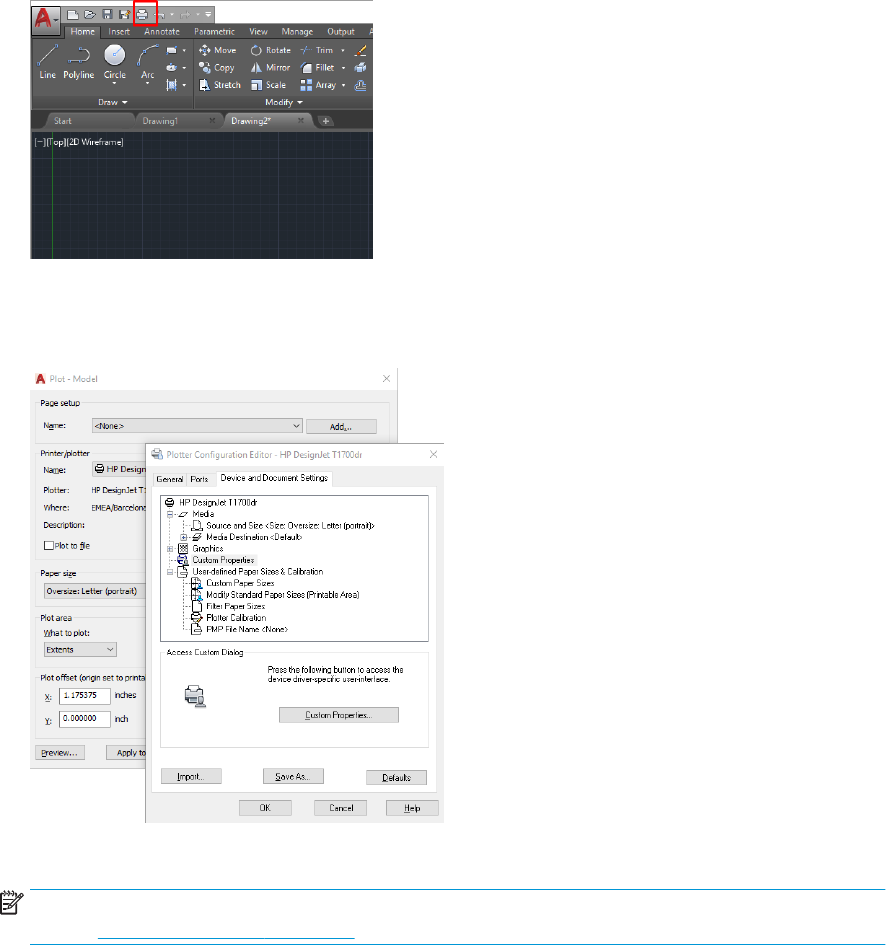

2. Click the Plot icon at the top of the window.
3. Ensure that the correct printer is selected, then click the Properties button.
4. Select the Device and Document Settings tab, and click the Custom Properties button.
5. In the Paper/Quality tab, select the paper type that you intend to use.
NOTE: If you select neither the paper source nor the paper type, the printer will not print on any protected
roll (see Protect a paper type on page 62).
6. Select the print quality (your own choice between speed and quality of printing).
7. If you intend to print on roll paper, you must decide where the printer should cut the paper.
● With a Windows V3 driver: Click the Paper/Quality tab, then the Margins/Cutter Settings button, and
select Clip content by margins.
● With a Windows V4 driver: Click the Layout tab; then, in the Layout Mode area, select With margins >
Clip content by margins.
96 Chapter 9 Practical printing examples ENWW
