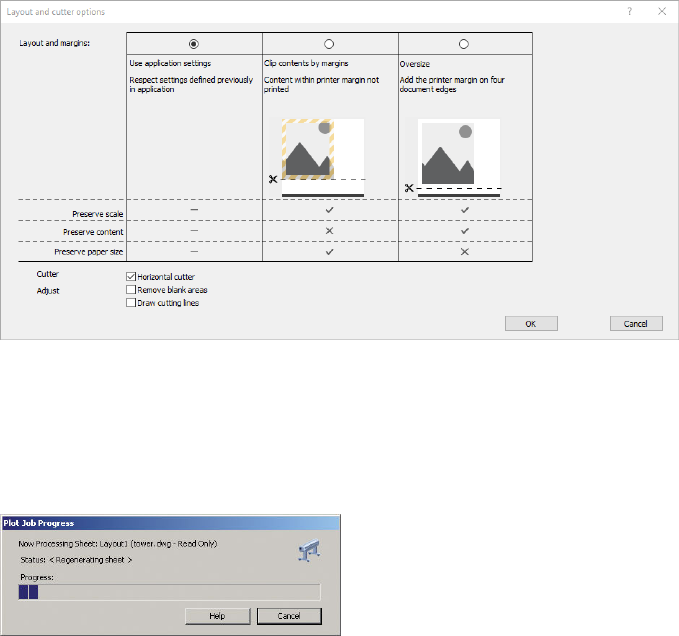

8. Select the Layout/Output tab, then select the Autorotate option. Autorotation can help to avoid wasting
paper.
9. Click the OK button and save your conguration changes to a PC3 le.
10. When you have clicked the OK button in the Plot window, the printer will construct a print preview.
Using Adobe Photoshop
1. In Photoshop, click File > Print and then select your printer.
ENWW Print a presentation 97
