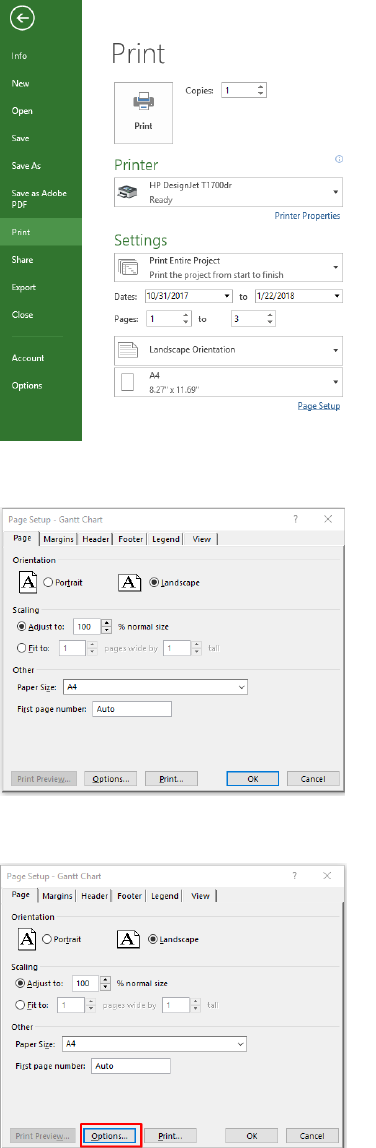

3. In the Settings section, you can choose the pages to print, the orientation, and the paper size.
4. Click Page Setup to choose the Paper Size you want.
5. Select Options to go to the printer driver.
The default options in the Paper/Quality tab are probably suitable: Paper source: Use printer settings and
Paper Type: Use Printer Settings.
6. Click Layout/Output > Resizing options to scale the document to a particular size. Alternatively, you can
scale the document in Project.
100 Chapter 9 Practical printing examples ENWW
