● Number: The number of the job
● Time: The date and time when the job was completed
● User: The name entered by the person who submitted the job (this item is present only if the corresponding
security setting is enabled)

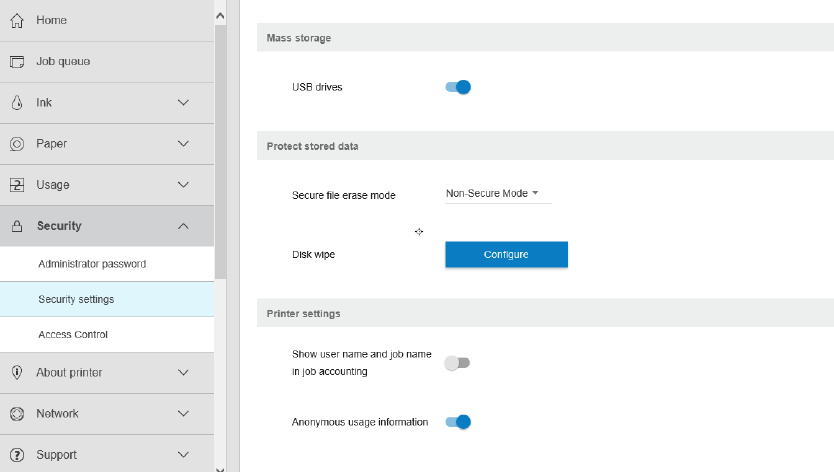

The user name is shown only if the Show user name and job name in job accounting setting is enabled for
users under Security > Security settings.
● Type: The type of job (print)
● Source: The source of the job: USB, network, and so on
● Print quality: The print quality used to print the job
● Copies: The number of copies requested (cumulative after reprints)
● Pages: The number of pages completed
● Status: The status of the job: printed, canceled by user, and so on
● Total cost: The total cost of the job (visible if cost assignment is enabled)
● Paper type: The paper type used for the job
● Paper area: The used paper area of the job
● Paper length: The used paper length of the job
● Ink used: The volume of ink consumed by the job
A job is considered completed when all its pages have been printed, or canceled by the user, or canceled by the
printer itself. An ongoing job (waiting for printing, being printed, being canceled, on hold for preview, and so on)
will not appear on this list.
You can lter the jobs shown on the accounting page by using a drop-down control available on the same page.
This control just changes the view, the job accounting information is not deleted in the printer. Essentially, this
page will report the last N jobs (or fewer if there are not enough completed jobs), where N is the value of this
conguration parameter. By default, N is 10.
