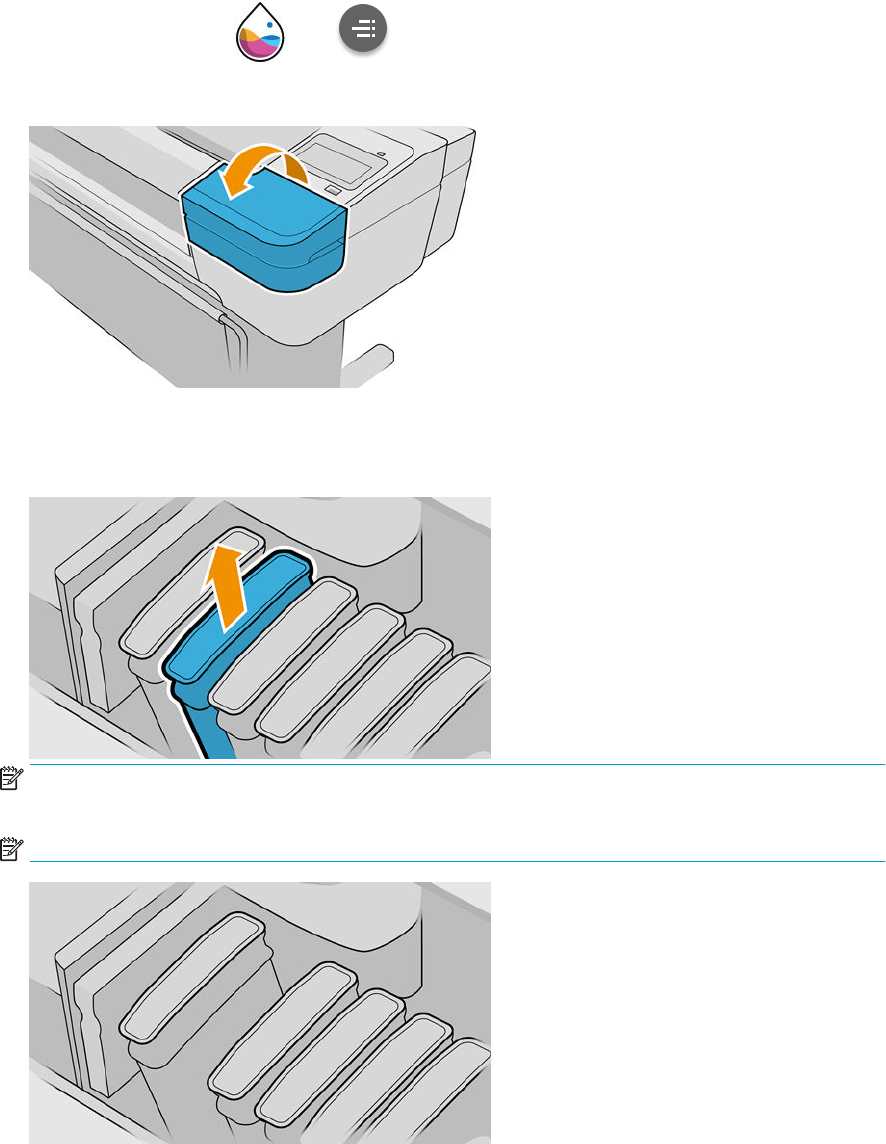

1. From the front panel, tap , then , then Replace ink cartridges.
2. Open the ink cartridge cover on the right-hand side of the printer.
3. Grip the cartridge you wish to remove.
4. Pull the cartridge straight up.
NOTE: Avoid touching the end of the cartridge that is inserted into the printer, as there may be ink on the
connection.
NOTE: Avoid storing partially used ink cartridges.
5. The front-panel display identies the missing ink cartridge.
Insert an ink cartridge
1. Before removing the cartridge from its wrapping, shake it vigorously.
2. Unwrap the new ink cartridge, nd the label identifying the ink color. Check that the letter or letters (for
example, M for magenta) marking the empty slot, matches the letter or letters on the cartridge label.
110 Chapter 11 Handling ink cartridges and printheads ENWW
