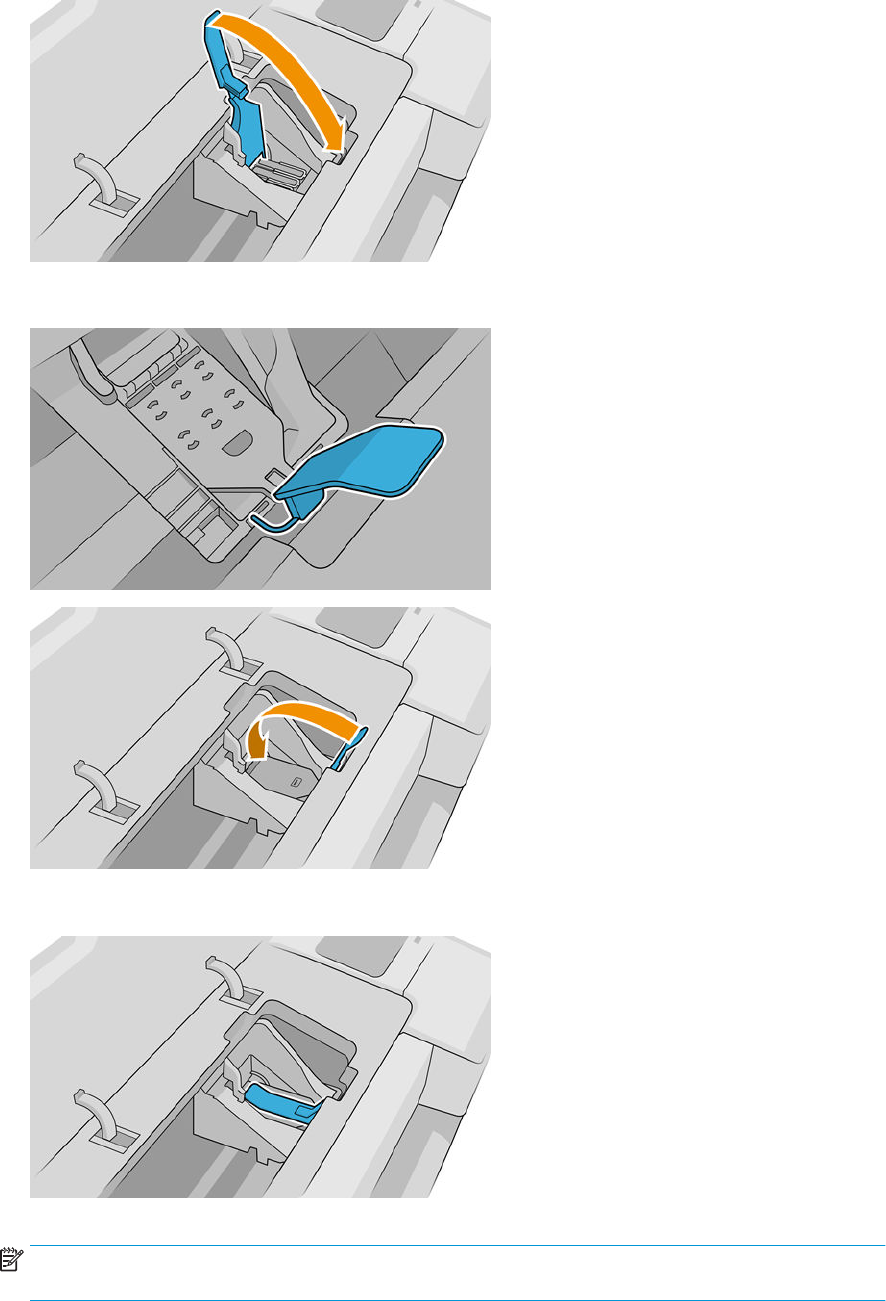

5. Insert all other printheads that need to be installed, and close the carriage lid.
6. Ensure that the end of the blue handle catches the wire loop on the near side of the carriage.
7. Lower the handle to rest on the carriage cover.
When all the printheads have been inserted correctly and are accepted by the printer, the printer beeps.
NOTE: If the printer does not beep when you insert the printhead and the Replace message appears on
the front-panel display, the printhead may need to be reinserted.
ENWW Insert a printhead 117
