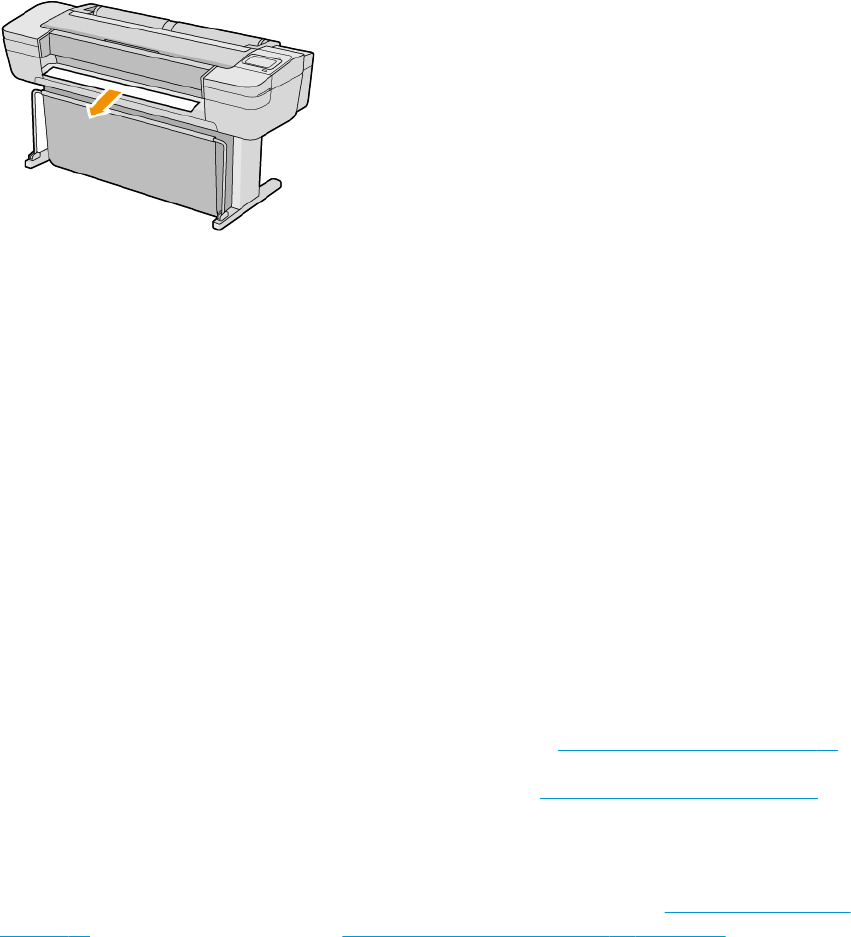

A strip stays on the output tray and generates jams
If a small piece of paper (200 mm or smaller) has been cut, such as before (if new roll) and after a full-bleed print
or after the front-panel option Form feed and cut has been used, the cut strip remains in the output tray. Only
when the printer is not printing, reach into the tray and remove the strip.
Printer displays out of paper when paper is available
If the roll has become loose from its core, it will not feed correctly and the printer will not load the paper. If
possible, tighten the paper to its core or load a new roll.
Prints do not fall neatly into the basket
● Ensure that the basket is correctly installed.
● Ensure that the basket is open.
● Ensure that the basket is not full.
● Paper often tends to curl near the end of a roll, which can cause output problems. Load a new roll, or
remove prints manually as they are completed.
Sheet stays in the printer when the print has been completed
The printer holds the paper to allow the print to dry after printing, see Change the drying time on page 36. If the
paper is only partially ejected after the drying time, gently pull the sheet out of the printer. If the automatic cutter
is disabled, use the Form feed and cut option in the front panel, see Feed and cut the paper on page 36.
Paper is cut when the print has been completed
By default the printer cuts the paper after the drying time has been completed, see Change the drying time
on page 36. You can disable the cutter, see Turn the automatic cutter on and o on page 36.
Cutter does not cut well
By default, the printer is set to cut the paper automatically after the drying time has been completed. If the
cutter is turned on but not cutting correctly, check that the cutter rail is clean and clear of any obstacles.
If the cutter is turned o, Form feed and cut only advances the paper. Use it to move the print far enough out of
the front of the printer, until it is convenient to cut manually with a straight edge or scissors.
Roll is loose on the spindle
The roll may need to be replaced or reloaded.
