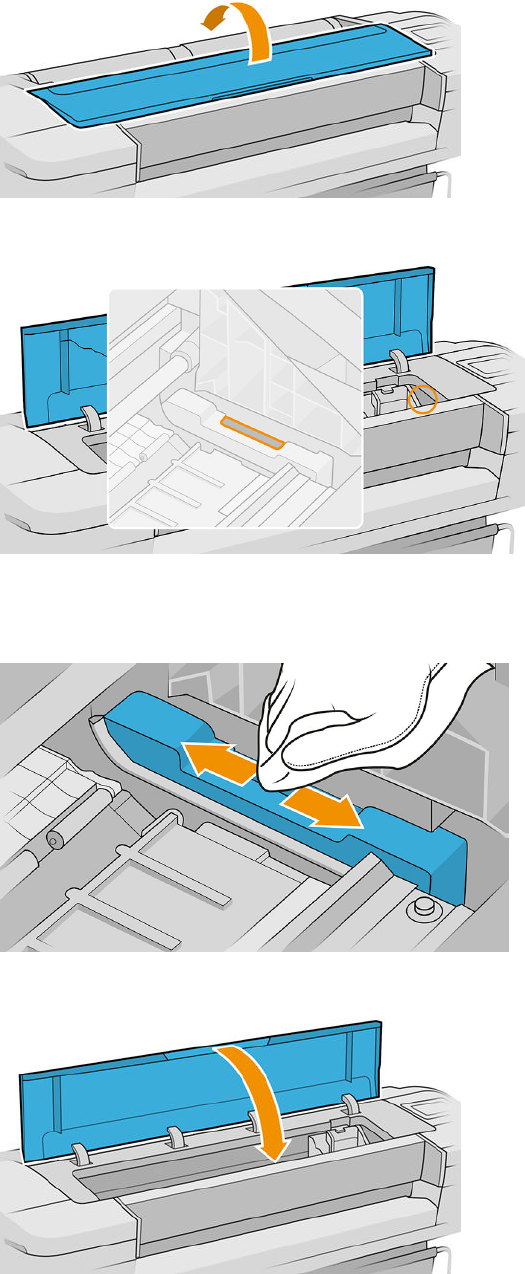

3. Open the window.
4. Find the printhead drop detector beside the stored printhead carriage.
5. Remove any debris blocking the printhead drop detector.
6. With a dry, lint-free cloth, wipe the surface of the drop detector to remove any non-visible debris.
7. Close the window.
ENWW Clean the printhead drop detector 159
