Home pages

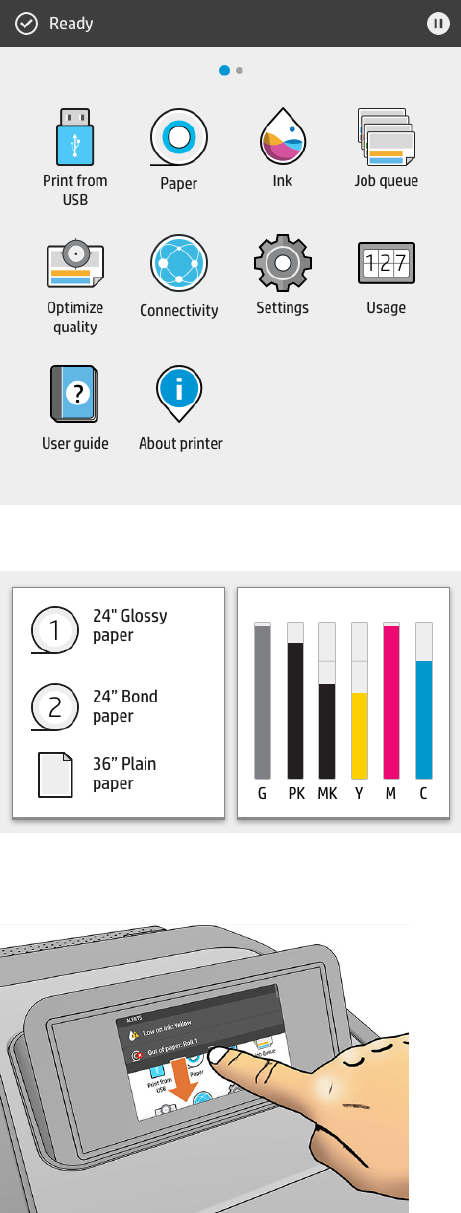

There are three top-level pages that you can move between by sliding your nger across the screen:
● The all-apps page displays a list of all apps available in your printer, and the status of each of them.
● If you swipe left to the widget page, you can see at a glance the status of ink and paper supplies.
● At the top of the all-apps page there is a dashboard that displays alerts related to the main functions of the
printer. Swipe down the dashboard to access the Status Center.
ENWW Front panel 11
