● Power options > Printer sleep to change the length of time the printer waits before going into sleep mode
(see Sleep mode on page 12). You can set the time from 5 to 240 minutes. The default time is 20 minutes
(total time including 5 minutes in dim mode).
● Power options > Auto-o due to inactivity to turn o the printer automatically after 120 minutes of
inactivity.
● Unit selection to change the units of measurement in the front-panel display. Select English or Metric. By
default, units are set to Metric.
● Restore factory settings to restore the printer settings to their original values as set in the factory. This
option restores all of the printer settings except the administrator password and the paper presets.
● Language.
● Firmware update to congure the automatic rmware update.
HP Utility
The HP Utility enables you to manage your printer from a computer with a TCP/IP connection.
NOTE: The HP Utility under Mac OS X and the HP DesignJet Utility under Windows have similar functions and
are sometimes referred to collectively as the HP Utility in this guide.
You can install the HP Utility from http://www.hp.com/go/T1700/drivers.

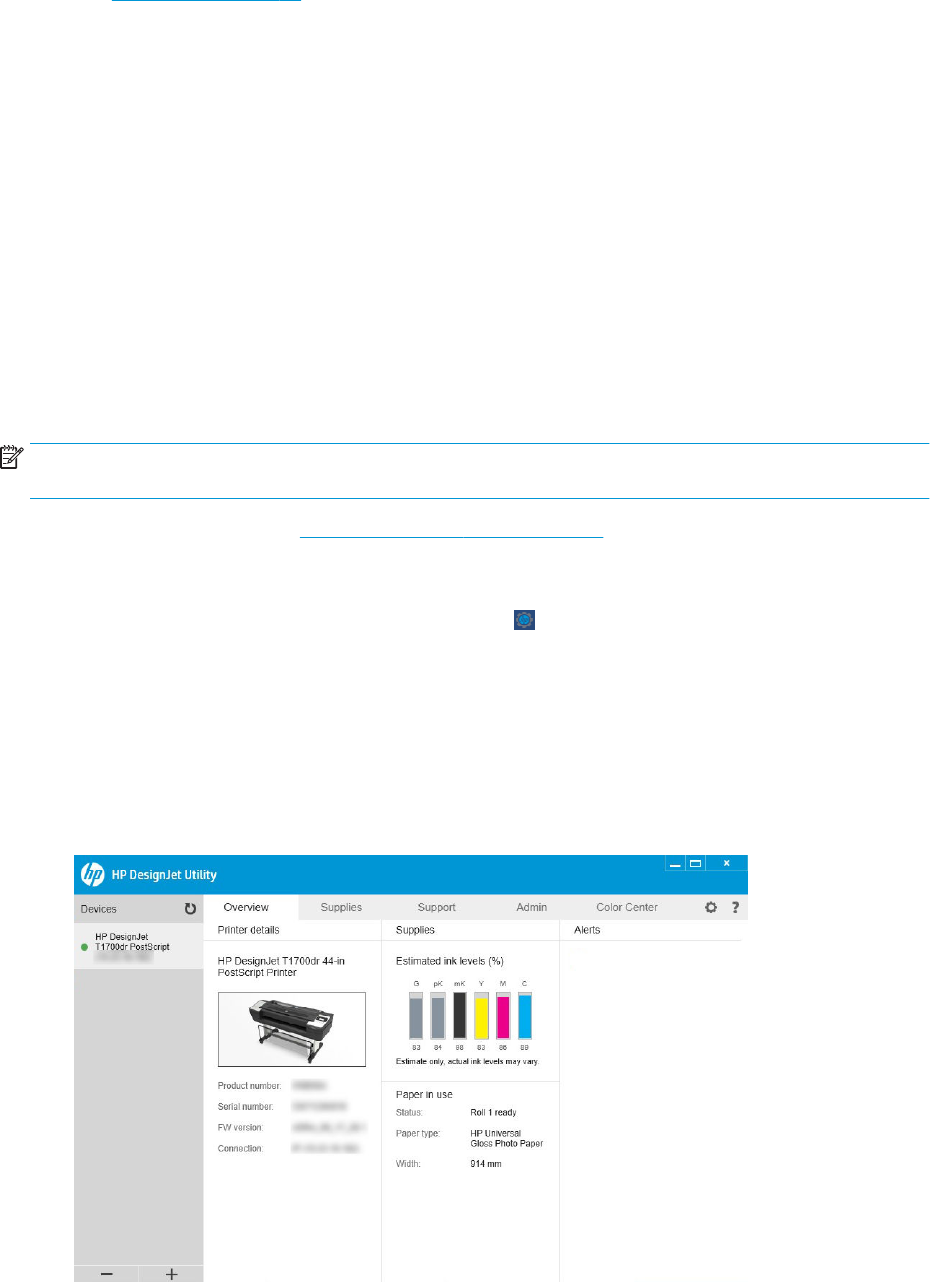

How to launch the HP Utility
● Under Windows, start the HP DesignJet Utility from the icon on your taskbar or from the Start menu >
HP > HP DesignJet Utility. This launches the HP DesignJet Utility, showing the printers installed on your
computer. When you open the HP DesignJet Utility for the rst time, it may oer you an automatic update
with enhanced functionality that we recommend you to accept.
● Under Mac OS X, start the HP Utility from your Dock shortcut or by clicking Applications > HP > HP Utility.
This launches the HP Utility, showing the printers installed on your computer.
When you select your printer in the left pane, everything that appears in the right pane is specic to that
printer.
ENWW HP Utility 13
