● sRGB or Adobe RGB (sRGB is the standard for most les)
● CMYK: Choose Coated FOGRA39 or US Web Coated (SWOP) v2.

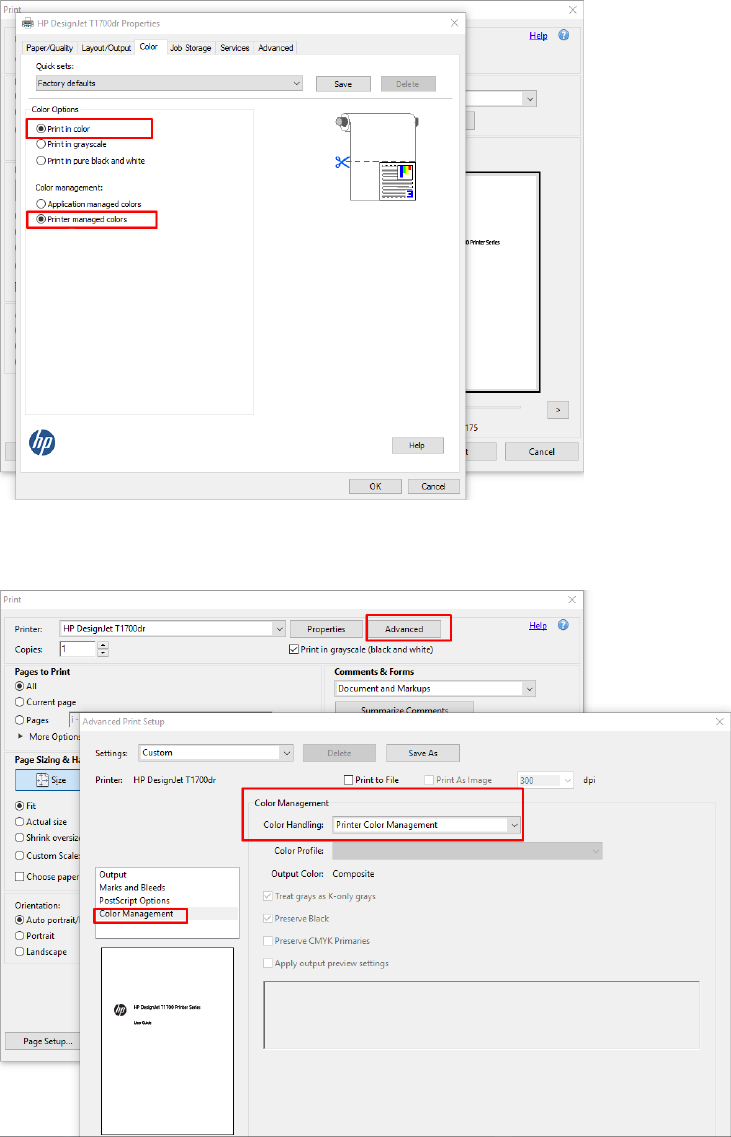

6. If you have a V3 driver, click the Advanced button in the Print dialog box, set Color Handling to Printer Color
Management, and click OK.
7. In the Print dialog box, click the Print button to print the document.
Using Adobe Photoshop
1. In Photoshop, click File > Print, then select your printer.
ENWW Print a document with the correct colors 91
