4. Push horizontally on the battery (1) with a small screwdriver and it will pop out of its holder (2) as
shown in the following figure.

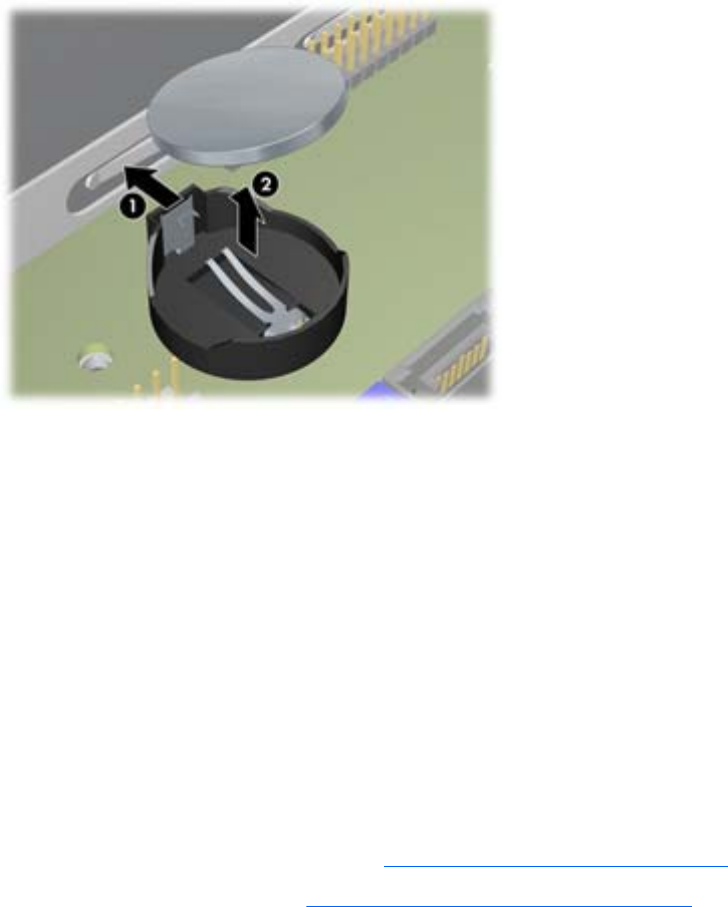

Figure 5-32 Removing the battery
Installing the battery
To install the battery:
1. Confirm the polarity (positive or negative) of the battery to position it correctly in the battery
holder.
2. Place the battery edge under the plastic housing tab and press gently until it snaps into place.
Hard disk drive
This section provides information to successfully remove and install a hard disk drive.
Removing the hard disk drive
To remove a hard disk drive:
1. Disconnect power from the workstation (see
Predisassembly procedures on page 62).
2. Remove the side access panel (see
Removing the side access panel on page 65).
3. Disconnect the power and data cables from the drive (1).
