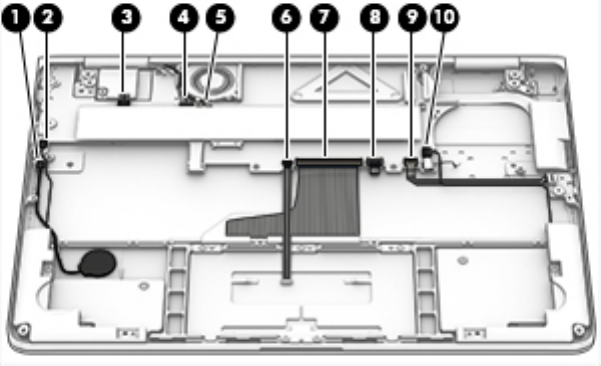

2. Disconnect the following cables from the system board:
(1) RTC battery cable (to avoid system board damage, see caution and associated image that follows
this step)
(2) Right front speaker cable (to avoid system board damage, see caution and associated image that
follows this step)
(3) Right rear speaker cable
(4) Rear fan cable
(5) Webcam cable
(6) Touch pad cable (ZIF connector)
(7) Keyboard cable (ZIF connector)
(8) Backlight cable (ZIF connector)
(9) Power button board cable (ZIF connector)
(10) Left front speaker
System board 41
