Mobile Label Printer HM-A300E Quick Start Guide Rev.1.0 Manufacturer : Xiamen Hanin Electronic Technology Co.,Ltd. ADD: Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen Tel: +86-(0)592-5885991 Web: www.hprt.
Printer & Accessories The printer is packaged with the following accessories. If any of these accessories is broken or missing, please contact the dealer that you bought the product. Printer USB Cable AC Adapter Battery Pack Quick Start Guide Note: 1) The AC adapter vary by local or region. 2) The items in the package are actually based on the order.

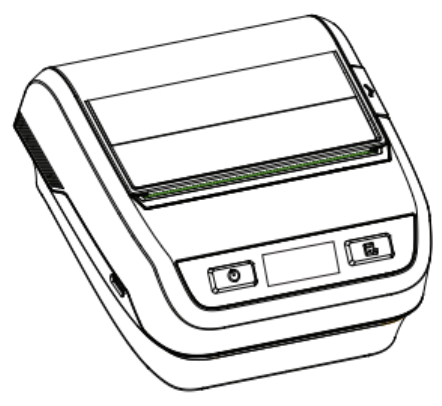

Appearance and Components Front View Paper Roll Perspective Window Cover-opening Button [MODE] Button Paper Feed Battery Platen Thermal Print Head Tear Bar Paper Guide USB Interface
Loading Paper 1. Press the cover-opening button to open the paper cover. 2. Unlock the paper guide as shown below. Unlock Lock 3. Load the paper in the orientation shown in the figure below. Make sure that the thermosensitive layer is facing down. Adjust the paper guide per the paper width. After adjusting, lock the paper guide.
4. Pull some extra paper and close the cover. Make sure that it is closed on both sides. 5. Use the tear bar to tear the extra paper.
Battery Pack Installation 1. Make sure that the printer has been turned off before you insert or remove the battery pack. 2. Insert the battery pack into the back of the printer as in the figure shown below, following the direction of the arrow. Press down on the battery pack until the hook click into place. 3. To remove the battery back, pull back the hook, and use the opposite procedure from the one you used to insert the battery pack.
Battery Charging Please charge the printer with the supplied USB cable. Charge via PC Charge via AC Adapter When battery pack runs out of power, the battery icon on the LCD will flash. It powers off automatically when continues printing. If you want to go on, please charge it.
Menu Settings 1. Press and hold the [MODE] button for approx. 2 seconds, and printer is turned on. Receipt Online [MODE] button [FEED] button 2. Press and hold both [MODE] button and [FEED] button, the main menu is displayed on the screen, followed by: language, density, sleep time, print, calibrate. 3. Press [MODE] button to change the option. 4. Press [FEED] button to change the category of sub-option; press and hold [FEED] button to confirm the current setting.
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
