ManualsBrandsHubbell ManualsCommercial Dish Washing EquipmentBooster Heater Electric, 13.5 kW with 16-Gallon Storage Capacity, ASME Stamped Stainless Steel Tank with CFC/HCFC Free Closed Cell Foam insulation, Electronic Display Controller with Low Water Cut-Off and Leak Detection, Stainless Steel Exterior, Pressure
Table Of Contents
1
Knockouts: Left Side And Bottom
3/4" X 1" X 1-1/4"

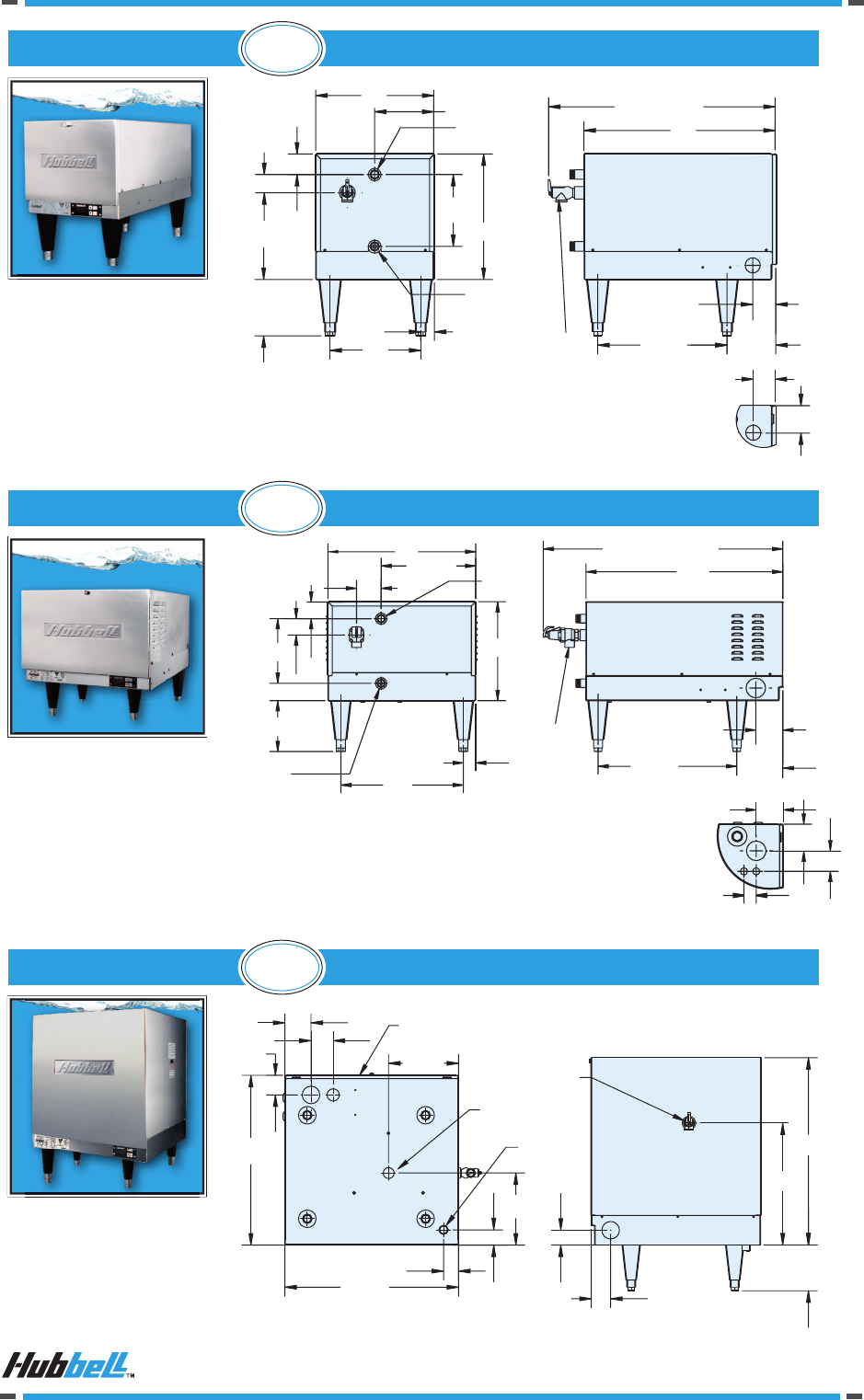

Model J6 - (1 to 18 kW) Dimensions
Shipping Weight: 95 lbs.
Model J6 - (24 to 58.5 kW) Dimensions
Shipping Weight: 110 lbs.
Model J16 - (1 to 58.5 kW) Dimensions
Shipping Weight: 160 lbs.
3"
23 1/2"
2"
2"
23”
2 5/8"
3 1/2"
Front
9 3/4"
9 3/4"
3/4" MNPT
Outlet
Nipple
3/4" MNPT
Inlet
Bottom View Right Side View
Knockouts: Left Side - 1-1/2" X 2"
Bottom - 1-1/2" X 2" and 3/4" X 1" X 1-1/4"
Relief
Valve
2"
2 5/8"
6"
16 1/2"
25 3/8"
Inlet
3/4" MNPT
6"
15"
1 1/2"
7 7/8"
2"
2"
3"
11 1/2"
18"
12"
Outlet
3/4"
MNPT
Rear View
24"
29 1/8" Approx.
Left Side View
Bottom View
Relief
Valve
17" 5 5/8"
3 1/4"
3 1/4"
3 1/4"
1 1/2"
2 1/2"
Knockouts: Left Side - (1) 1-1/2" X 2"
Bottom - (2) 1/2" and (1) 1-1/2" x 2"
Rear View Left Side View
Bottom View
Inlet 3/4"
MNPT
10"
1 1/2"
13 3/4"
13"
2 1/4"
2"
7 7/8"
6"
6 1/2"
Outlet 3/4"
MNPT
21"
25" Approx.
2 1/2"
5 3/8"
14 1/8"
Relief
Valve
2 1/2"
3"
9 1/2"
