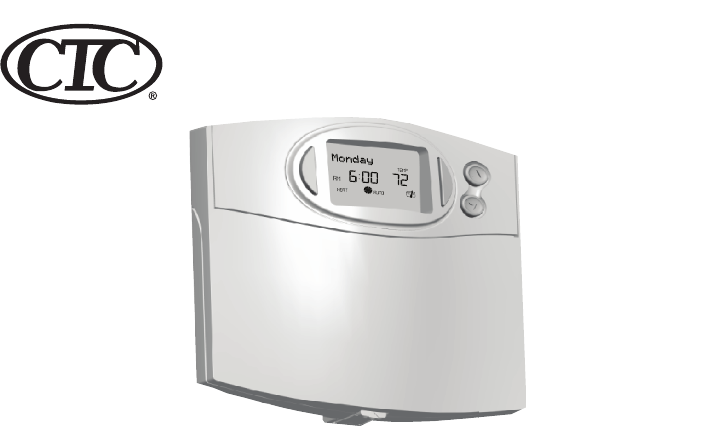

Model 43665 Programmable Thermostat 44005-01 05/09/2007
Table of Contents INTRODUCTION INSTALLATION PROGRAMMING Read This Before Installing Thermostat 5 What You Need 8 Remove Old Thermostat 8 Wire Labeling 9 Mount Wallplate and Thermostat 10 Connect Wires and Mount Thermostat to Wallplate 11 Option Menu 12 Remote Sensor Channel Set-Up (does not apply to thermostat model 44660) 14 Setting Time and Day 16 12 Hr. / 24 Hr.
Table of Contents (continued) PROGRAMMING (continued) OPERATIONS Programmable Fan 29 System Selection Key 31 Fan Key 31 Reviewing the Current Temperature Setting 32 Temporary Manual Override 33 Permanent Manual Override 34 Vacation (Programmable) Hold 35 Auto Season Changeover 36 Home Today 37 Energy Monitor 39 Filter Monitor 40 SPAN Settings 41 Auto Recovery 42 Keyboard Lock 43 Backlighting (INDIGLO® Night-Light) 44 Low Battery Warning 45 Error Mode 45 Problems & Solution 46
OPERATIONS (continued) TROUBLESHOOTING WIRING DIAGRAMS Technical Support Technical Support 47 48
Read This Before Installing Thermostat IMPORTANT Read the entire installation section of this Owner’s Manual thoroughly before you begin to install or operate your Hunter Thermostat. 2 SYSTEM COMPATIBILITY Your Thermostat is designed to operate with most gas, oil, electric, or 2-wire hot water heating and air conditioning systems. It will also operate single-stage heat pumps that do not have auxiliary or emergency heat.
TEMPERATURE RANGE Your thermostat can be programmed between 45°F and 95°F (7°C and 35°C). However, it will display room temperatures from 15°F to 99°F (-9°C and 37°C). “HI” will be displayed if the temperature is higher than 99°F (37°C), and “LO” will be displayed if the temperature is lower than 15°F (-9°C). 6 AUTO RECOVERY Your thermostat is set from the factory to gradually recover the room temperature from an energy saving program to your comfort program.
REMOTE SENSORS (does not apply to thermostat model 44660) Your thermostat can support 3 remote sensors that will measure the temperature from three different locations - two indoor and one outdoor. To configure your thermostat to work with the remote sensors, follow the instructions for Sensor Channel selection on page 14 of this manual. To configure the remote sensors, consult the Remote Sensor Instruction Manual.
Installation What You Need This thermostat includes two #8 slotted screws and two wall anchors for mounting. To install your thermostat, you should have the following tools and materials. Remove Old Thermostat CAUTION: Do not remove any wiring from existing thermostat before reading the instructions carefully. WIRES MUST BE LABELED PRIOR TO REMOVAL. ■ IMPORTANT! Turn off the power to the furnace at the main power panel or at the furnace. ■ Remove existing thermostat cover. See Figure 1.
Wire Labeling ■ Each wire coming from the wall to the existing thermostat is connected to a terminal point on that thermostat. Each of these terminal points is usually marked with a code letter as shown in Table A on the next page. ■ IMPORTANT! BEFORE DISCONNECTING ANY WIRES, APPLY THE SELF-ADHESIVE LABELS PROVIDED TO THE WIRE AS SHOWN IN TABLE A and B ON PAGES 12-13. (For example, attach the label marked W to the wire that goes to the W or H terminal on your existing thermostat.
Installation Mount Wallplate and Thermostat ■ Remove the wallplate from your thermostat by pressing the release tab on the bottom of the thermostat. (See Figure 2.) ■ Position wallplate on wall and pull existing wires through large opening. Then level for appearance. Mark holes for plastic anchors provided if your existing holes do not line up with those on the Hunter wallplate. ■ Drill holes with 3/16" bit and gently tap anchors into the opening.
Connect Wires and Mount Thermostat to Wallplate ■ Straighten bare end of each wire and cut or strip it to 1/4” maximum. Insert each labeled wire into its maching terminal. ■ Hold the wires in each terminal and tighten the terminal screws securely, otherwise a loose wire could cause operational problems with your system or thermostat. ■ Push excess wire back into hole to prevent interference with mounting of the thermostat. ■ Make sure the System Switch is set to OFF.
PROGRAMMING Option Menu Your thermostat has many settings that can be adjusted to fit your system and preferences. option ■ Press to enter the Option Menu and to change to the next option selection. ■ Press at any time to return to normal mode. ret/clear Language Selection option 1 ■ or to select English, Spanish, or French. 2 ■ to see how much power remains in the Battery Status option thermostat’s battery.
Fahrenheit or Celsius (F°/C°) selection option 3 ■ or to change the thermostat display between Fahrenheit and Celsius. 12 Hour or 24 Hour Clock selection option 4 ■ or to change the time format display between 12 hour (AM / PM) and 24 hour (Military). 5 ■ or to change the SPAN setting to 1, 2, or 3. The factory setting is 2. Setting 1 will cause shorter cycle times. Setting 3 will cause longer cycle times.
PROGRAMMING Auto Recovery selection option 7 ■ or to enable “YES” or disable “NO” the Auto Recovery Mode. The factory setting is “YES.” ■ To change between Heat or Cool recovery modes. NOTE: Auto Recovery is one of the ENERGY STAR® features of this thermostat. Refer to the Auto Recovery section on pages 45-46 for more information. Remote Sensor Channel (does not apply to thermostat model 44660) ■ to reach the Sensor Channel Set screen.
PROGRAMMING ■ or to set RF communication channel (1-15) for the selected remote sensor. ■ If you do not have, or are not using the a second or outdoor remote sensor, set the channel to - -. NOTE: The thermostat will not control your HVAC sysytem from the remote sensor set up as Outdoor it is crucial that you DO NOT place remote sensor 1 or outdoors. 2 LCD Contrast adjustment option 9 ■ or to change the LCD contrast between 0 and 9. Lower numbers lighten the display.
PROGRAMMING Setting Time and Day Step 1 day/time ■ Press to enter time and day setting mode. The current hour and the AM / PM indicator will be flashing. ■ Press to change the Hour up or down to the current hour. or Step 2 Note the AM / PM indicator, as the display will change at 12 AM and 12 PM. day/time ■ Press again to change from hour setting to minute setting. The current minute will be flashing. ■ Press to change the Minute up or down to the current minute.
Step 3 day/time ■ Press again to change from minute setting to day setting. The current day will be flashing. 17 ■ Press to change the Day up or down to the current day. or Step 4 day/time ■ Press again to change back to the normal display. or ret/clear NOTE: You may press ret/clear at any time during Day and Time setting to return to the normal display. 12 Hr. / 24 Hr. Time Format Your thermostat is set from the factory in normal 12 (AM / PM) format.
PROGRAMMING Programming Introduction Studies conducted by the Department of Energy estimate that setting your thermostat back 10°F (6°C) for two 8-hour periods during winter can reduce your fuel bill by as much as 33%. By setting your thermostat up 5°F (3°C) for two 8hour periods during summer you can reduce your fuel bill up to 25%. Your thermostat is capable of holding up to 4 separate programs for each day of the week.
Personal Program Schedule Before changing programs, use this Personal Program Schedule to determine which times and temperature settings will best satisfy both your comfort and energy saving requirements. Heating Day Prog. 1 Use a pencil so you can revise your records each time you change your temperature settings. Prog. 2 Prog. 3 Prog. 4 Mon. Time Temp Time Temp Time Temp Time Temp Tues. Time Temp Time Temp Time Temp Time Temp Wed.
PROGRAMMING Personal Program Schedule (continued) Cooling Day Prog. 1 Prog. 2 Prog. 3 Prog. 4 Mon. Time Temp Time Temp Time Temp Time Temp Tues. Time Temp Time Temp Time Temp Time Temp Wed. Time Temp Time Temp Time Temp Time Temp Thurs. Time Temp Time Temp Time Temp Time Temp Fri. Time Temp Time Temp Time Temp Time Temp Sat. Time Temp Time Temp Time Temp Time Temp Sun.
Programming ■ Your thermostat can be programmed for weekdays and weekends, have unique programs for all 7 days, or the same program for everyday. Use Weekday/Weekend Programming on page 24, 7-day Programming on page 26, or Everyday Programming on page 28 to enter or revise programs to match your Personal Program Schedule. ■ Familiarize yourself with Manual Programming, so that you can easily modify your programs as your comfort needs change.
PROGRAMMING Weekday/Weekend Programming Step 1 program ■ Press to enter program mode. Weekdays are displayed and program 1 is flashing. system ■ Press to change heat of cool mode programming while in programming mode Step 2 or ■ The Program hour and AM or PM indicator are flashing. Press to change the hour. program Step 3 ■ Press again to change to the minute position. The current minute will be flashing. or ■ Press to change the minute.
Step 4 ■ Press again to change to the program temperature. The current program temperature will be flashing. ■ Press to change the temperature. or Step 5 fan Step 6 sensor Step 7 program ■ Press to select Auto or On for each program. “Auto” will automatically cycle your system to maintain your set temperature. “On” will run your system continuously. “Auto” is the default setting.
PROGRAMMING Step 8 prog/day ret/clear Step 9 system ■ Press to change to Weekend programs. ■ Repeat steps 3 through 5 to complete the weekend programs. ■ Press at any time to exit the Program Mode. ■ After 15 seconds, the thermostat will return to normal mode automatically. ■ Change to program the other system mode, and repeat steps 2 through 7.
7-Day Programming Step 1 program ■ Press to enter program mode, display shows weekday programs. 1 2 prog/day ■ Press 2 times to reach the Monday program. Step 2 Step 3 Step 4 system ■ Press to select HEAT or COOL to program the corresponding system. ■ The Program hour and AM or PM indicator are flashing. Press or to change the hour. program ■ Press again to change to the minute position. The current minute will be flashing. ■ Press or to change the minute.
Step 5 program ■ Press again to change to the program temperature. The current temperature will be flashing. ■ Press Step 6 program or to change the temperature. ■ Press to move to programs 2, 3 and 4. ■ Repeat Steps 3 through 5 to complete the programs for Monday. Step 7 prog/day ■ Press to change to the next day’s programs. ■ Repeat Steps 3 through 6 to complete the selected day’s programs. ■ Continue repeating Steps 3 through 7 to program all 7 days of the week.
PROGRAMMING Everyday Programming Step 2 Step 3 program ■ Press to enter program mode, display shows weekday programs. prog/day ■ Press 9 times to reach the Everyday program. system ■ Press to select HEAT or COOL to program the corresponding system. or ■ The Program hour and AM or PM indicator are flashing. Press to change the hour.
Step 4 program ■ Press again to change the minute position. The current minute will be flashing. ■ Press to change the minute. or Step 5 program or Step 6 program ■ Press again to change to the program temperature. The current temperature will be flashing. ■ Press to change the temperature. ■ Press again to move the next program number. ■ Repeat Steps 3 through 5 to change the remaining programs. ret/clear ■ Press at any time to exit the Program Mode.
PROGRAMMING Program Options Programmable Fan ■ Any time during programming, this will change the fan display between “AUTO” and “ON” for the selected system and Program number. (Heat and Cool can be set separately.) “AUTO” = Fan control runs when the system is ON “ON” = Fan control runs continuously fan NOTE: Fan must be set to “PROG” for the Programmable Fan to be activated.
Weekend ■ Press to display the Sa - Su programs. Programs prog/day program ■ Press repeatedly to cycle through the 4 programs. Daily and program ■ Press to display M - F programs. Everyday NOTE: Time or Temperature display will be blank when at least Programs one weekday program is different. (All programs will de displayed if programmed in Everyday mode.) prog/day ■ Press to change to Sa - Su. Again, if part of the display is blank, one of the weekend programs is different.
OPERATION System Selection Key system ■ Press to select the desired system. ■ When Auto is selected, the system will change between Heat and Cool automatically. Refer to the Auto Season Changeover section on page 39. Fan Key fan ■ Press to set the fan operation. ■ AUTO: the fan will turn on with the system. ON: the fan will run continuously. PROG Auto or ON: (Programmable Fan) The fan will select AUTO or ON, depending on the setting in the programs.
Reviewing the Current Temperature Setting ■ Current time and temperature. ■ Thermostat is set to AUTO and the heating system is selected. ■ Press for 1 second or less. or ■ Set Temperature is shown beside current room temperature. ■ If held for over 1 second, Temporary Manual Override mode is entered. Refer to the next section.
OPERATION Temporary Manual Override To temporarily change the current set temperature without affecting your program: ■ Press or and hold for about 1 second to enter Manual Override mode. Display will flash. ■ Press perature. ret/clear or to change to your desired new tem- ■ Press to return to normal mode, or wait 5 seconds for it to return automatically. ■ The current program number will flash to signify the Temporary Override.
Permanent Manual Override To hold your manual override for an extended period of time: hold ■ Press to make the current room temperature the HOLD temperature. HOLD will alternate on the display with the day and any other messages. ■ Follow the Temporary Override instructions above to change the Permanent Override temperature. or ■ You can confirm the held set temperature by pressing for less than 1 second. To end the Permanent Manual Override: ret/clear ■ Press to return to the current program.
OPERATION Vacation (Programmable) Hold This thermostat can hold a fixed temperature for a selected number of days (up to 30). After the selected number of days, the thermostat will return to normal program operation. This feature allows you to return home to your normal comfort setpoint temperatures. hold or day/time ■ Press and hold for 2 seconds to enter Vacation Hold mode. The set temperature will be the current room temperature and the Vacation counter will be set to 1 day.
Auto Season Changeover When the System Selection is in AUTO position, the thermostat will automatically change between Heating and Cooling systems, depending on your program. We recommend keeping your programmed heating and cooling temperatures at least 5°F (3°C) apart to allow the Auto Season Changeover to occur when the appropriate temperature span has been reached.
OPERATION Home Today This Hunter patented feature allows you to quickly and temporarily override your energy saving program setting on days when you are normally away from home with one key press. ■ Press to enter the Home Today override. The highest program temperature for today will be selected from your programs in Heat mode and become the set temperature. (In Cool mode, Home Today will select the lowest program temperature for today to be the set temperature.
Home Today (cont.) ■ If the system is changed between Heat and Cool modes (either manually or by Auto Season Changeover) during the “Home Today” override period, the setpoint temperature will be automatically updated. It will automatically change from the highest heat program setpoint to the lowest cool program setpoint, or from the lowest cool program setpoint to the highest heat program setpoint. ■ Press to exit Home Today mode before the schedule ending time.
OPERATION Energy Monitor The Energy monitor feature measures and stores the amount of time the heating and air conditioning system operates. Usage can be displayed for Today (since 12AM), Yesterday, This Month (up to 30 days), Last Month (last 30 days), and Total (up to 999 Hrs. 59 Min.). By monitoring your energy usage, you see how much the setback periods are saving and you can test program adjustment to save even more. Use tables on pages 21-22.
Filter Monitor Your thermostat also keeps a record of the number of hours your filter has been in use. To maximize your system’s performance and energy efficiency, change or clean your filter regularly. ■ When the total system run time for heat and cool reaches 500 hours, “FILTER” will alternate on the display with the day to remind you to clean or change your system’s filter. “FILTER” will continue to display until the counter is set back to zero. filter ■ Press to review total filter usage.
OPERATION SPAN Settings Stage 1 Your thermostat is set at the factory to cycle at 1°F (0.5°C) above and below the set temperature in Stage 1. (Span = 2.) This setting has been designed to provide a comfortable room temperature under most all conditions. However, if you find your system cycling too fast or too slow, then the Span can be adjusted to modify the cycle time. Refer to the Option Menu Stage 1 Span selection on page 17. Span = 1.
Auto Recovery Hunter’s Auto Recovery feature meets the ENERGY STAR® guidelines for energy efficiency by allowing the heating or cooling system to recover gradually from an energy-saving setpoint temperature to a comfort setpoint temperature. Auto Recovery calculates how early to turn your system back On, so that the room temperature is already comfortable by the start of the comfort temperature program period. Auto Recovery works in both Heat and Cool modes.
OPERATION Auto Recovery (continued) Home Today, Permanent hold or Vacation hold. ■ Auto Recovery will be canceled and change to Temporary Manual Override mode if the setpoint is adjusted during the recovery process. ■ If the system changes between heat and cool (automatically or manually) then the thermostat will recalculate Auto Recovery again. Setpoint temperature will be changed to the opposite system’s comfort temperature if the recovery entry criteria are still met.
Backlighting (INDIGLO® Night-Light) Your thermostat has an electroluminescent lamp that backlights the display for easy viewing in the dark. When any key is pressed the display is illuminated. The display will remain illuminated for 15 seconds after the last key is pressed. This allows the light to stay on if you need to operate several keys. The backlight will decrease in brightness before shutting off. 44 NOTE: The backlight is powered by the 24V AC supply.
Safety Features 45 Low Battery Warning Your thermostat has a low battery warning system. When the batteries are detected to be weak, the low battery warning is indicated by “Low Batt” alternating on the LCD display with the day. You then need to replace the batteries with 2 new AA alkaline batteries. You have 30 seconds to change the batteries before the settings are lost. Error Mode If the thermostat is unable to control your system due to an unexpected problem, the thermostat will enter Error Mode.
TROUBLESHOOTING Problem Solution SCRAMBLED OR DOUBLE DISPLAY (numbers over numbers) 1. Remove clear Mylar sticker NO DISPLAY 1. Check terminal connection. A common (C) wire is required for operation. 2. Check battery connections and batteries. 3. Press RESET button with a small pin and hold in for two seconds. ENTIRE DISPLAY DIMS 1. Replace Batteries 2. Adjust LCD contrast in the Option Menu. PROGRAM DOES NOT CHANGE AT YOUR DESIRED SETTING 1. 2. 3. 4. AUTO / FAN DOES NOT TURN ON 1.
Problem (cont.) Solution (cont.) HEATING OR COOLING DOES NOT GO ON OR OFF 1. Check that the system selector key is in the correct position (“HEAT,” “COOL” or “AUTO”). 2. The thermostat may be in the AUTO mode. Look for “AUTO” on the LCD display. If the Heat and Cool program temperatures are close, then the thermostat requires a larger room temperature change before changing from Heat or Cool. 3. There may be as much as a 4 minute delay before the Heat or Cool system turns On - wait and check.
WIRING DIAGRAMS Wallplate Terminals G System Selector Jumper Rc1 Rc Fan Relay Rh Y1 W/B Y/O Heat/Cool 24V Supply Cool Contactor Fan Relay HG/HE - SSHP Rc1 Cool 24V Supply Rh Heat 24V Supply Heat Relay or Valve Cool Contactor Wallplate Terminals Rc1 Rh HG/HE - SSHP Heat Pump 24V Supply Y1 W/B Y/O Cool Mode Fan Relay System Selector Rc1 Rc Rh Y/O Heat 24V Supply Y1 W/B Heat Relay or Valve 3-Wire Heat Only System System Selector Jumper Rc 2-Wire Heat Only System Hea
