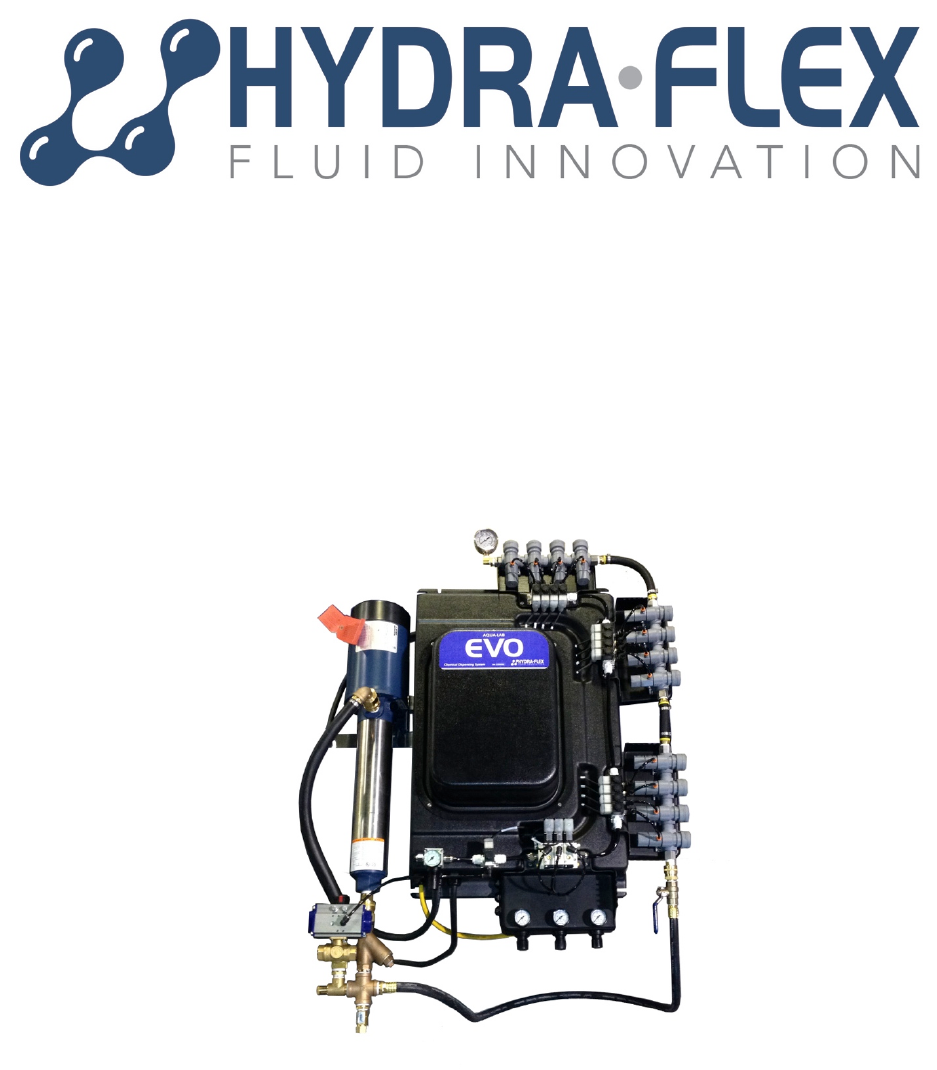

AQUA-LAB EVO™ Chemical Dispensing System Istobal User Manual REV B © Hydra-Flex Inc 2014
Table of Contents Contents Specifications .............................................................................................................................................. 1 Illustrations .................................................................................................................................................. 2 Principles of Operation................................................................................................................................
Specifications 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Operating water pressure: 180- 200 psi - Do Not Operate Pump Above 225psi Pneumatics operating pressure: 80-100 psi – Do Not Operate Valves Above 100psi Maximum water source temperature 140° F Operating ambient temperature: 40-120° F Electrical supply a. 208/230 or 480 volts (3-phase) b. 2 hp pump 7.4 amps @ 230 volts or 3.7 amps @ 480 volts c. Overload Setting 8.0 @ 230 volts or 4.0 @ 480 volts Operate solenoid valves with 24VAC, 24VDC, 120VAC a. 3.
Illustrations H2O Inlet Pressure Gauge Air Actuated Hydra-Cannon Valve – 1-12 starting at the top left hand side and working clockwise. Air Solenoid Valves – 1-16 starting at the top left hand side and working clock-wise.
Diode Terminal Block Timer Contactor Integrated Motor Starter Power In Thermal Overload © Hydra-Flex Inc 2014 Page | 3
Principles of Operation The Aqua-Lab EVO was designed to meet the application requirements of the standard roll-over automatic car wash with an available pump room to store chemical and equipment. The system is set-up so that all that is required from the car wash controller is an output signal for each valve. The EVO electrical control box uses that signal to open both the 3.5 watt air solenoid valves and to start the pump.
Startup Pump Priming Instructions 1. Pull the pump outlet line at the manifold quick-connect. Open ball valve and direct toward a drain or container to remove the majority of the air from the pump until a steady stream of water is flowing (approx. 1 min). 2. Start the pump using a command from the controller. Ensure that pump rotation is correct as indicated by the arrow on the bottom of the pump and that 200 psi can be reached. o If pump cannot regulate to 200 psi.
Istobal M22 / M24 Initial Set Up Application Injector Nozzles Pre Spray / 2 step Shampoo 618098 – 3.25gpm 618086 – 2.25gpm 10x 0880, 4x 632.676 2x 0880, 10x 0680 Shampoo Rinse Flow Thru - 3000173 See shampoo White Foam 618086 – 2.25gpm As Shipped Triple Foam 3x 618070 – 1.5gpm each As Shipped Wax / Super Wax 618096 – 3.25gpm 2x 632.
Application Optimization (repeat for each application) • • • • • • • Application too wet o Increase air o Reduce injector size (decreases water) o Increase metering tip (increases chemical) Application too dry o Decrease air o Increase injector size (increases water) o Decrease metering tip (decreases chemical) Nozzle sputters o Decrease air o Decrease nozzle(s) and/or size used on arch o Increase injector size (increases water) Too much chemical used o Decrease metering tip o Decrease metering tip a
Recommended Maintenance The recommended service and maintenance on the AQUA-LAB System are as follows.
Troubleshooting Injector Vacuum Check (for troubleshooting injectors) 1. At the Chem-Flex injector, remove the chemical feed line from the injector hose barb. 2. Attach the tubing of the vacuum gauge to the Chem-Flex hose barb 3. With the pump(s) on, manually activate the chemical that is to be tested at the main car wash control cabinet. An injector that is working properly will have a reading greater than or equal to (≥) 20 in Hg 4.
Air Operated Valve Replacement 1. Shut off the ball valve to Hydra-Cannon manifold 2. Disconnect air line from front of valve 3. Unscrew quick connect fitting by hand (DON’T LOSE BLACK WASHER) 4. Unscrew valve assembly from the Hydra-Cannon manifold 5. Screw new valve into manifold until hand tight and threaded pilot port is facing forward 6. Remove the cap from pilot port and thread in quick connect fitting to front of valve – Hand Tight ONLY 7. Push air line back into fitting 8.
Pump Issues Problem Potential Causes Solutions Pump Operates, but only delivering 100150 psi Incorrect Motor Rotation Reverse rotation by interchanging two leads Pump not Primed Missing 1 of 3 phases Inadequate water supply See Priming Instructions Wire according to diagram Check pressure on inlet side of pump to be sure positive pressure is maintained Replace with larger piping Make sure connections are tight Replace worn parts or entire pump, clean parts if required Make sure constant control volta
Pressure Regulator Issues Problem System won’t regulate up to 200 psi Potential Causes Solutions Pump not primed Debris in regulator Motor rotation incorrect Opening too many valves at once Follow priming instructions Remove regulator and clean out debris Verify rotation System is limited by size of pump and size of injectors, increase flow by adding secondary pumps or reduce size / number of injectors open Replace check valve Replace regulator Replace Pump Defective check valve (if applicable) Defect
Appendix © Hydra-Flex Inc 2014 Page | 13
Chem-Flex Injector Part Numbers Chem-Flex Injector Part Numbers Part Number 618029 618040 © Hydra-Flex Inc 2014 # Barbs 1 1 GPM 0.25 0.50 618051 618057 618070 618083 618086 618098 618125 629029 1 1 1 1 1 1 1 2 0.75 1.00 1.50 2.00 2.30 3.20 5.40 0.25 629040 629051 629057 629070 629083 629086 629098 629125 2 2 2 2 2 2 2 2 0.50 0.75 1.00 1.50 2.00 2.30 3.20 5.
Replacement Parts List – Aqua-Lab EVO E A, B, C, D G F Q S L K R I, J O H N M P A B C D E F G H I J K L M N O P Not Shown Q Q Q R S © Hydra-Flex Inc 2014 Part Name Contactor Thermal Overload Diode Terminal Block Timer CPVC Air Valve 24V Din I Solenoid Cable 10 GPM Pump Bypass Regulator Wye Strainer Wye Strainer
AQUA-LAB WARRANTY Factory Limited Hydra-Flex Inc warrants its equipment to be free from defect in material or workmanship under proper normal proper use for a period of one (1) year beginning the date of purchase. The Hydra-Flex Inc’s liability shall be limited to repair or replacement of parts found to be defective within the warranty period and following Hydra-Flex Inc’s inspection. Hydra-Flex Inc shall have the option requiring the return of defective material to establish the purchaser’s claim.
