106
DeviceNet Gateway
8.4.2 Creation of Network Configuration

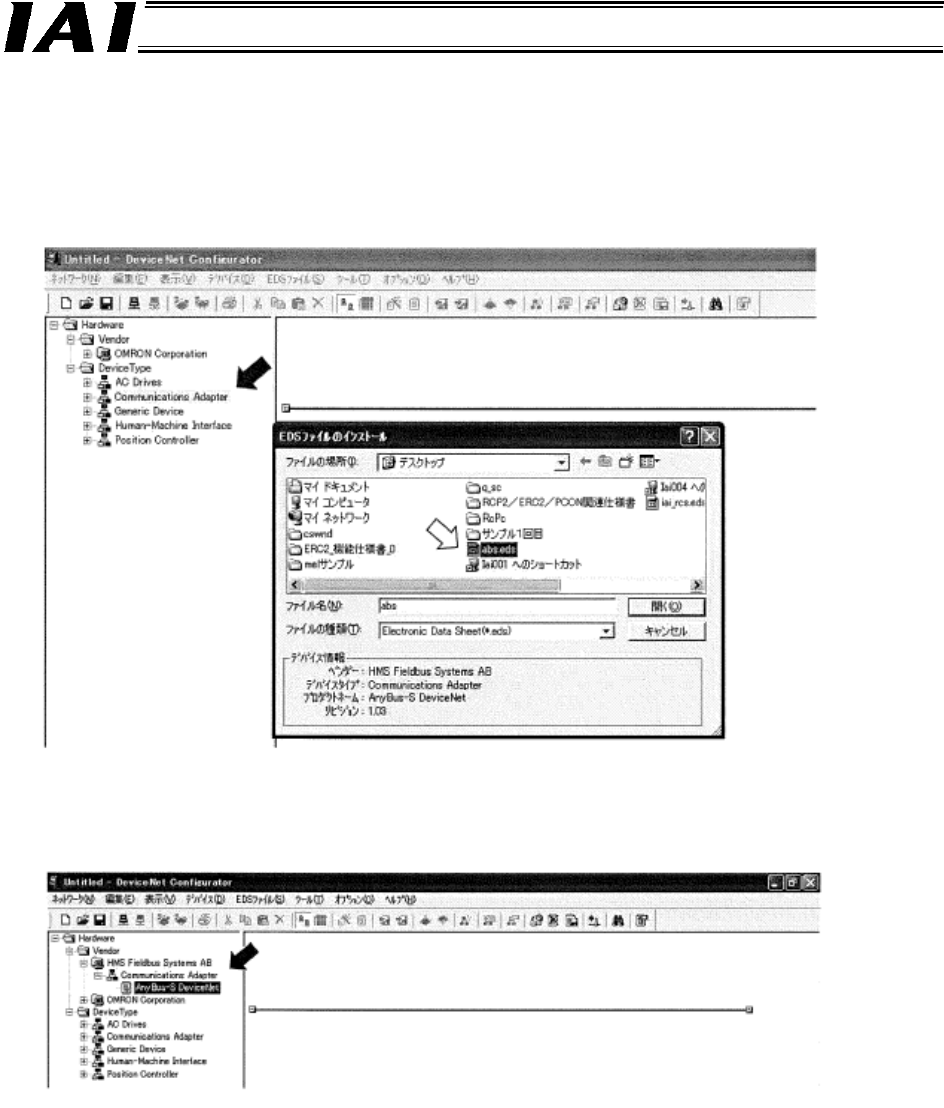

(1) Installing a EDS file
[1] In the hardware list shown on the left side of the initial window, select “Communications
Adapter” under “Device Type.”
[2] Click EDS File (S), and then select Install (I). Specify the location where the EDS file is stored,
and install the file.
[3] When the registration is complete, a new level for HMS Fieldbus System AB is created below
Vendor.
