108
DeviceNet Gateway

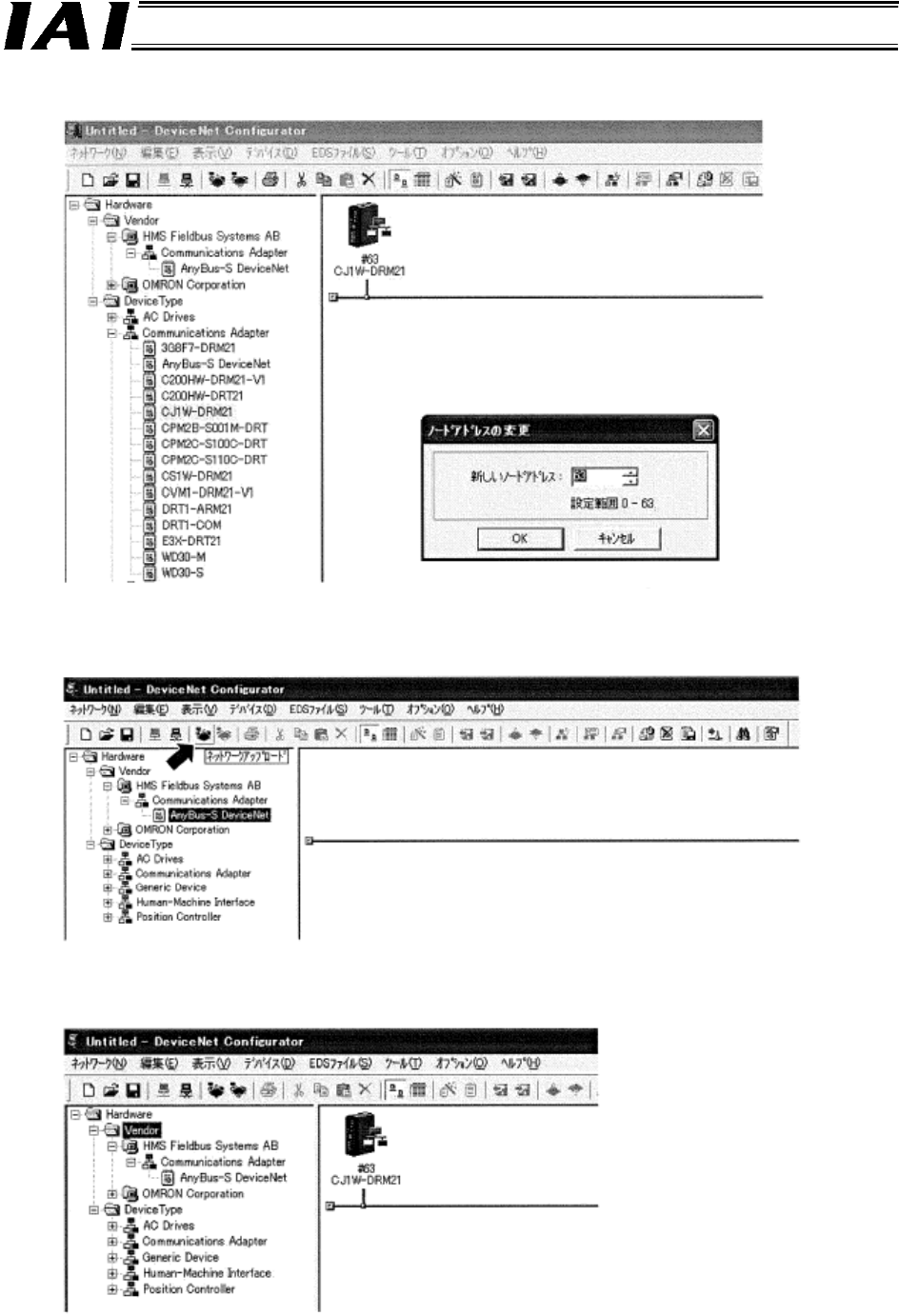

• Next, set the node address to 63 (a desired value between 0 and 63 can be selected).
[2] Automatic recognition
• Click Network Upload.
• The master station (CJ1W-DRM21) is automatically recognized and registered in the network
configuration pane on the right side of the window.
