111
DeviceNet Gateway

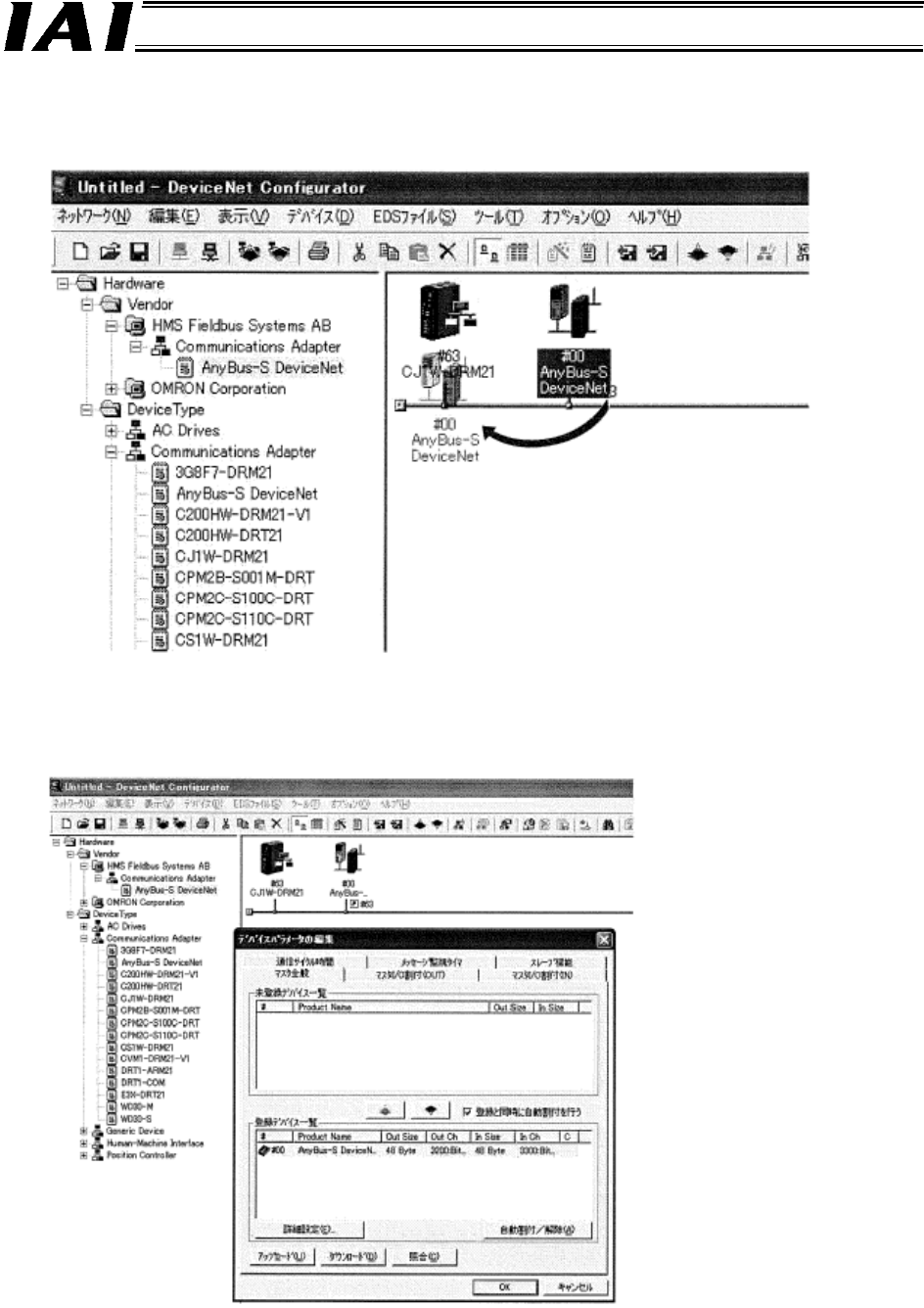

(2) Registering the slave station (Gateway Unit) to the master
[1] In the network configuration pane, drag the slave station and drop it over the master to register
the slave to the master.
[2] In the network configuration pane, double-click the master station to open the device
parameters edit window and confirm that the items shown in the list of registered devices
correspond to the settings you have entered in step (1) of 8.4.3.
