Environmental considerations
Temperature and humidity requirements are as follows:
v Operating: +10°C to 40°C (50° to 104°F) with 8% to 80% relative humidity
v Shipping: −40°C to +60°C (−40° to 140° F), which includes condensation but not
rain.
v Storage: 0°C to +60°C (32° to 140° F)
The
4810/4910 SurePOS 300 meets all worldwide Electromagnetic Compatibility
(EMC) standards. Refer to Appendix B, “Notices,” on page B-1 for a complete
description.
Front view and LEDs

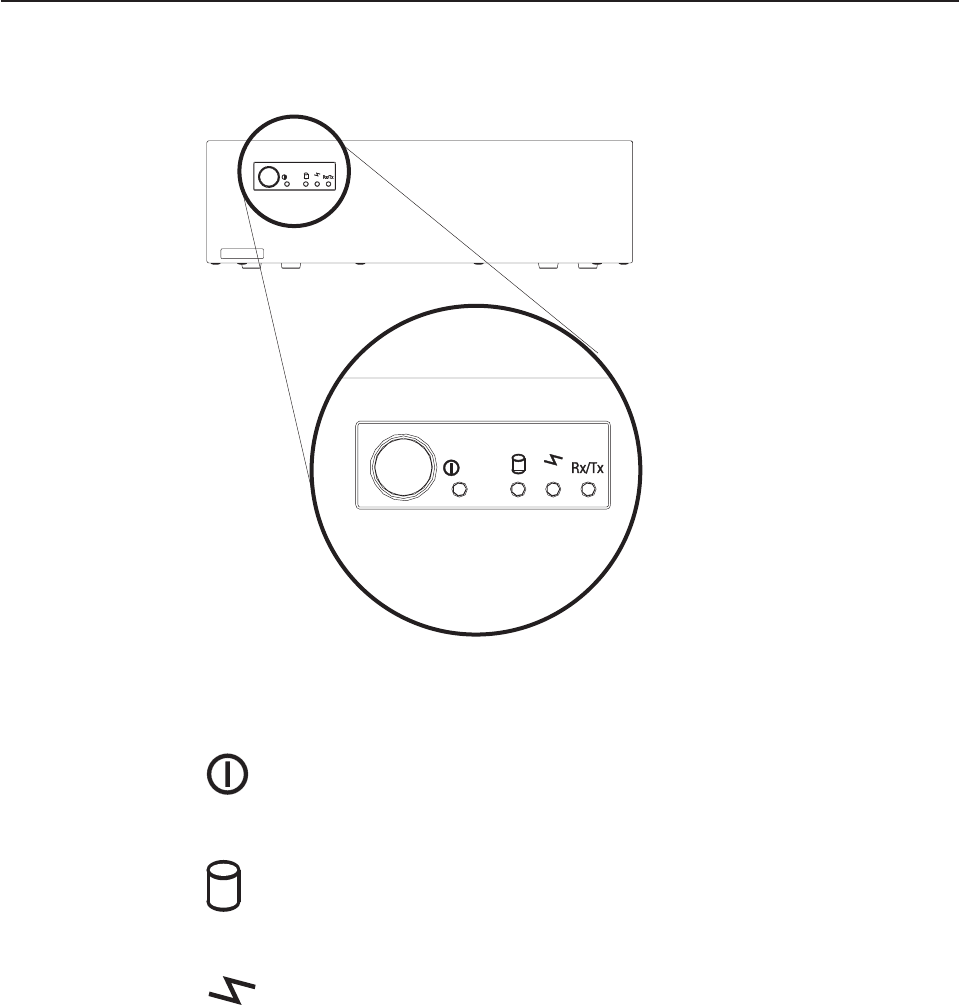

Figure 1-2 shows the LEDs of the 4810/4910.
The LEDs function as follows:
This LED indicates that the 4810/4910 is powered on.
This LED, which blinks during HDD access, indicates HDD activity.
OK
OK
OK
Figure 1-2. Front view of 4810/4910
Product introduction
11-9-2005
