3.Useanydocumentationthatcomeswiththehot-swapharddiskdriveandfollowthoseinstructionsin
additiontotheinstructionsinthistopic.
Toinstallorreplaceahot-swapharddiskdrive,dothefollowing:
1.Usethefrontdoorkeytounlockthefrontdoorandthenusethefrontdoorhandle1topivotthe
frontdoortotheopenposition.

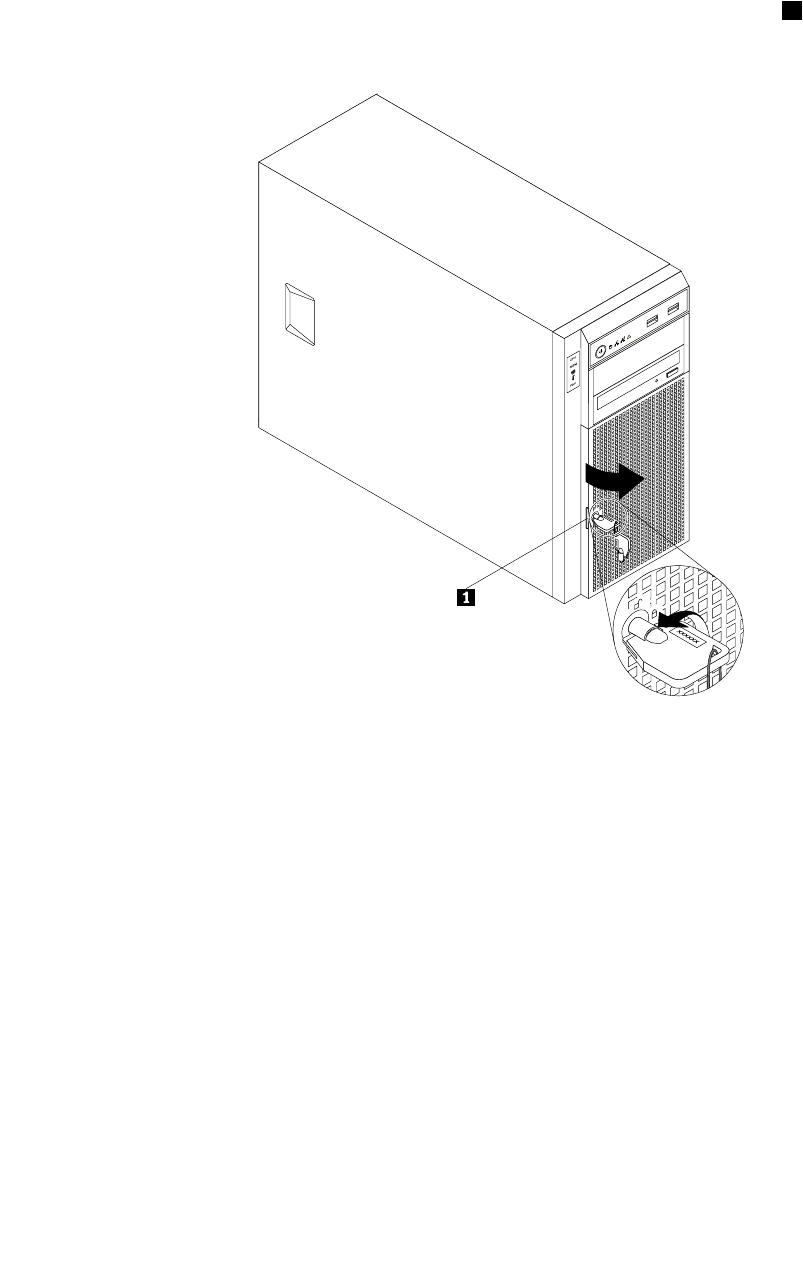

Figure58.Openingthefrontdooroftheserver
2.Locatetheappropriateharddiskdrivebay.See“Servercomponents”onpage25.
120ThinkServerUserGuide
