8.Pivotthepowersupplyassemblyalittlebitinthedirectionasshownandthenliftitoutofthechassis.
CPU
MEM

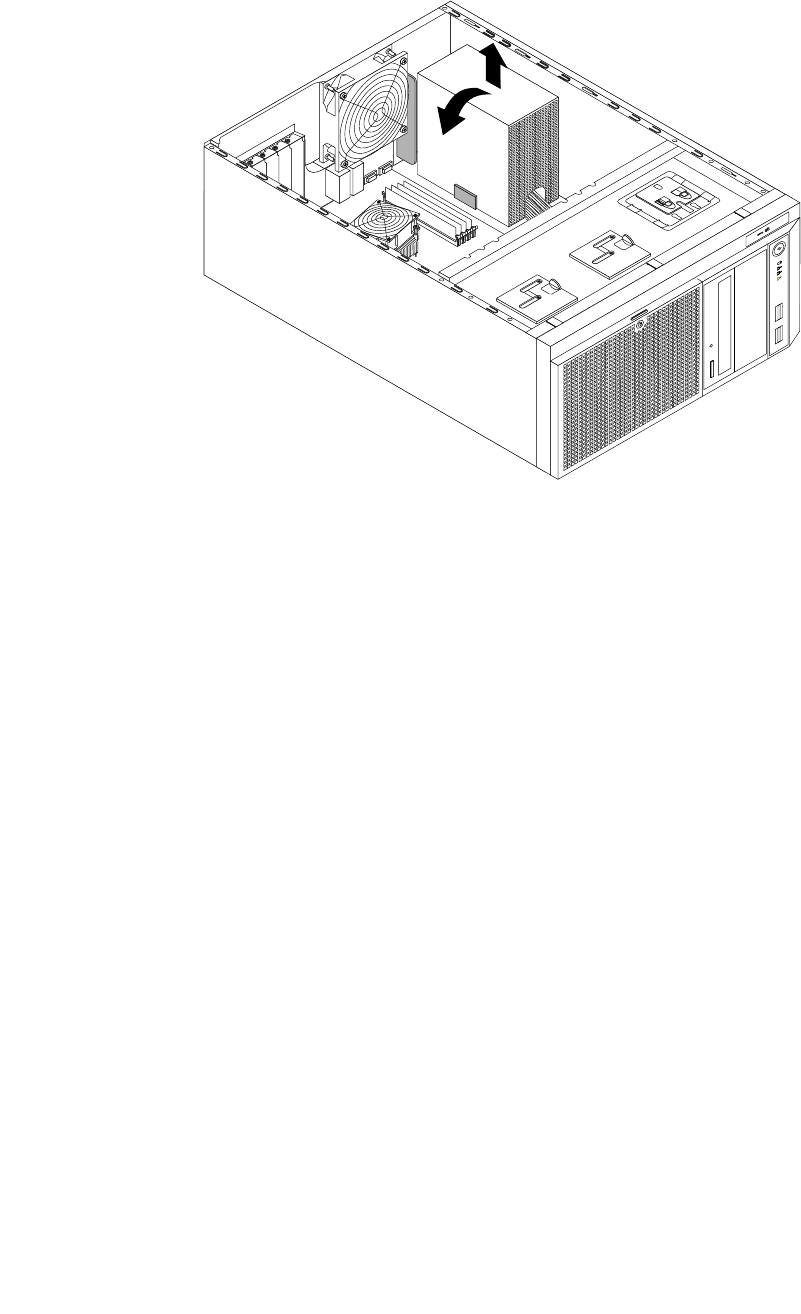

Figure78.Removingthenon-hot-swappowersupplyassembly
9.Touchthestatic-protectivepackagethatcontainsthenewpowersupplyassemblytoanyunpainted
surfaceontheoutsideoftheserver.Then,removethenewpowersupplyassemblyfromthepackage
andensurethatthenewpowersupplyassemblyisthecorrectreplacement.See“Features”onpage
7forinformationaboutthesupportedpowersupplyassemblies.
Chapter6.Installing,removing,orreplacinghardware139
