8.ConnecttheotherendofthesignalcabletotheDITmoduleconnectoronthesystemboard.See
“Systemboardcomponents”onpage42.Then,properlyroutethesignalcableoftheDITmodule.You
mightneedtosecurethesignalcablewithcableclipsortiesinthechassis.

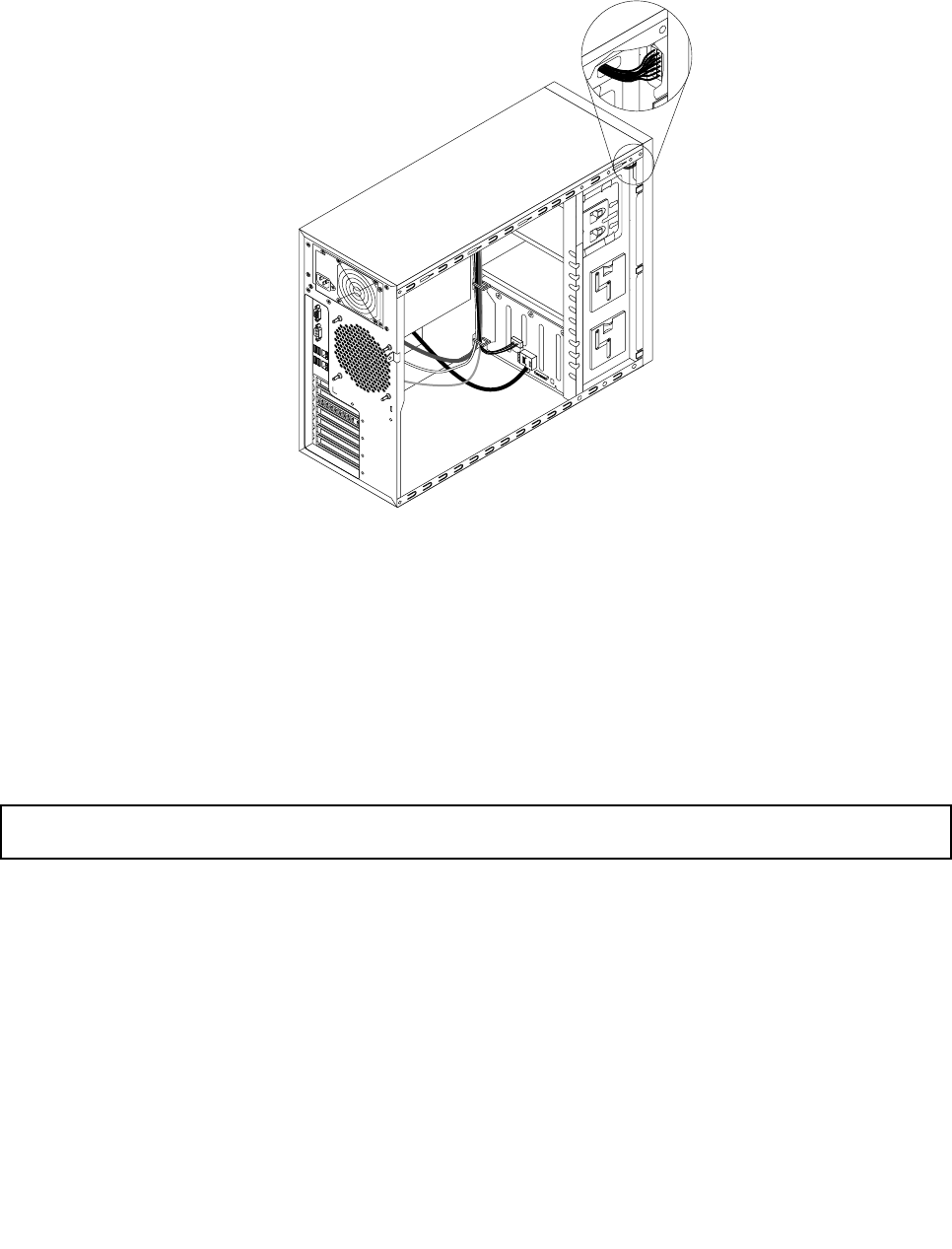

Figure52.Cablerouting
9.Reinstallthefrontsystemfan(s).See“Replacingthefrontsystemfan”onpage149.
10.Reinstallthefrontbezel.See“Removingandreinstallingthefrontbezel”onpage87.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage162
.
RemovingtheDITmodule
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”
onpageiii
and“Guidelines”onpage83.
ThistopicprovidesinstructionsonhowtoremovetheDITmodule.
ThistopicappliesonlytoservermodelsthatcomewiththeDITmodule.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
1.Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationinthistopic.
2.IfyouremovetheDITmodule,theserverwilllosethediagnosticLEDsontheDITpanel.
ToremovetheDITmodule,dothefollowing:
Chapter6.Installing,removing,orreplacinghardware113
