1130 PCMCIA Slots
v 1010 Battery ASM
v 1020 Keyboard ASM
v 1100 Fan ASM
Warning:
Special care must be taken when disconnecting the
PCMCIA slots not to cause a short or damage the
connector.
To remove the PCMCIA slots ASM:

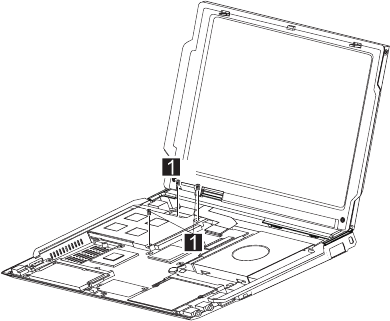

1. Remove the three screws.
A
Note: The following steps 2 and 3 only apply to the
s31 series. If you are servicing the s30 series,
skiptostep4.
2. Remove the screw from the HDD/FPC bracket.
ThinkPad s30, s31
49
