1140 System Board
v 1010 Battery ASM
v 1020 Keyboard ASM
v 1030 Hard Disk Drive ASM
v 1040 Suspend Board ASM
v 1045 Suspend Board Cable ASM
v 1050 Modem Card ASM
v 1055 Modem Cable ASM
v 1060 Wireless Card ASM (s30 only)
v 1065 IEEE 1394/LAN Card ASM
v 1070 IEEE 1394/LAN Card Cable ASM
v 1075 DIMM Card ASM
v 1100 Fan ASM
v 1130 PCMCIA Slots
Note: See “CE Utility Program Diskette” on page 27 and
“Replacing the System Board” on page 29 before
proceeding.

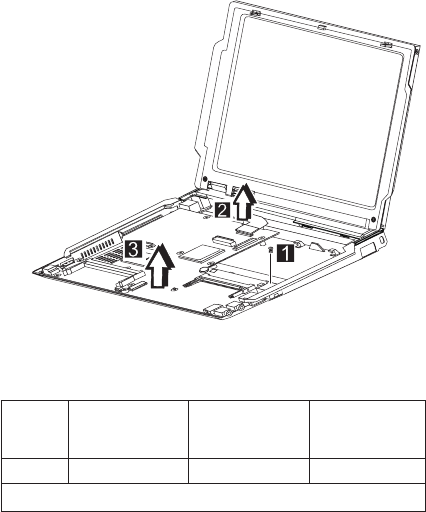

To remove the system board ASM:
1. Remove the screw.
2. Disconnect the FPC connector from the system board.
3. Remove the system board.
Step
Size
(Quantity) Head & Color Torque
1 M2.0 x 4L (1) Flat head, black 2.0 kgf-cm
Note: Make sure you use the correct screw for replacement.
ThinkPad s30, s31 51
