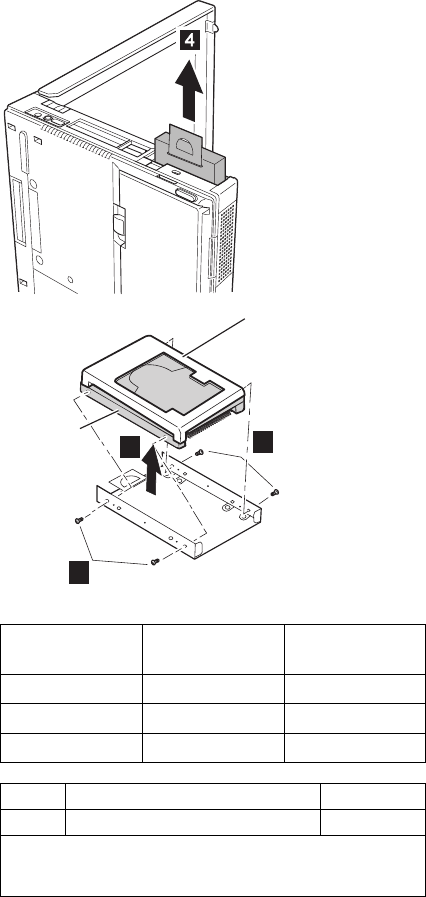

Spacer
Hard Disk
Driver
5
5
6
HDD Capacity Actual
Thickness
With Spacer
4.0 GB 9.5 mm Yes
4.0 GB 12.5 mm No
6.4 GB 12.5 mm No
Step Size (Quantity) Torque
6 M 3 x 2.8 mm, Flathead (4) 3-4 kgcm
Note: Make sure that you use correct screws and tighten all
of them firmly to the torque shown in the table. Never reuse
screws that have been removed. Use new ones instead.
