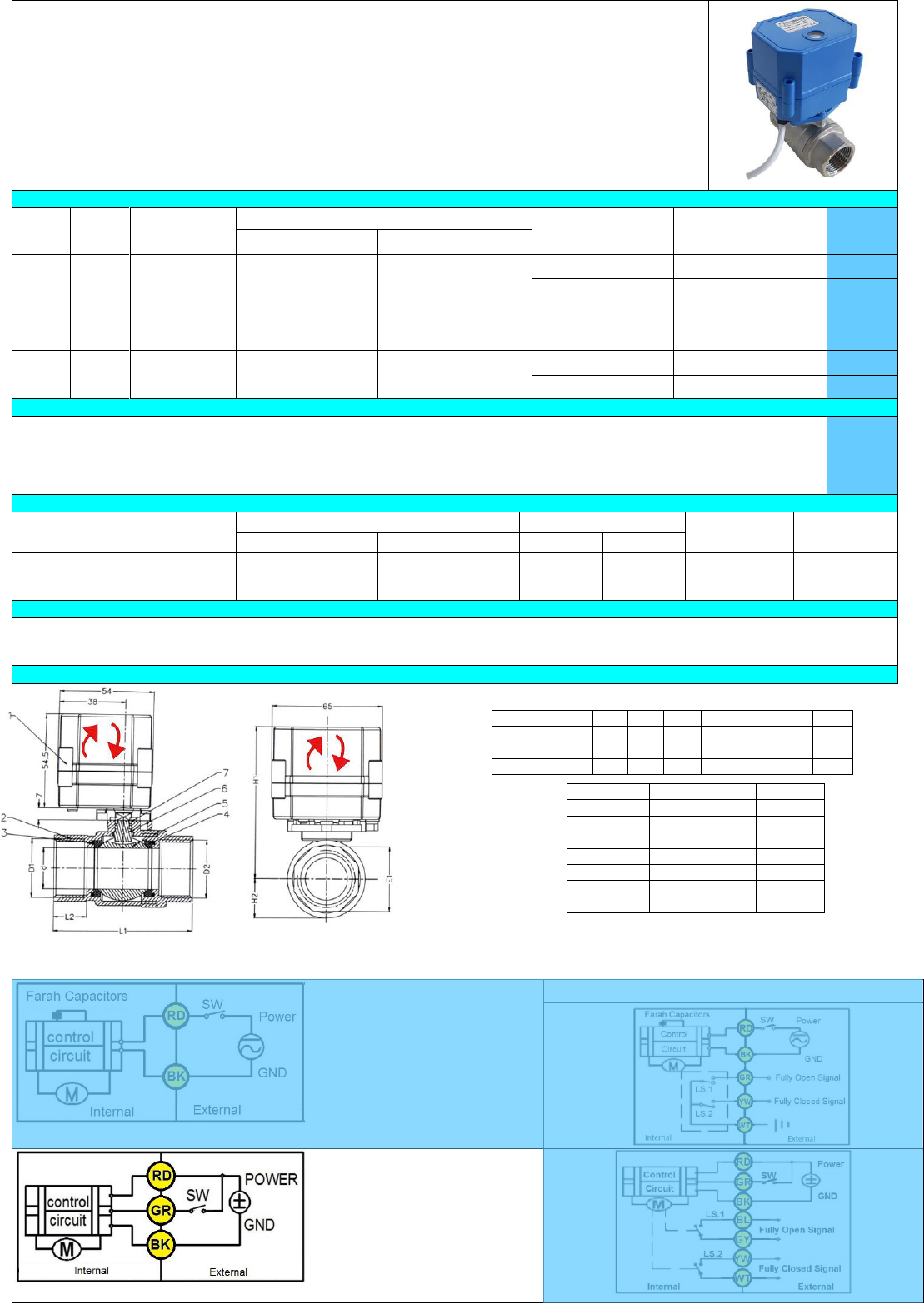

ManualsBrandsICH ManualsAutomation & PneumaticsICH ABVM08S/9 Ball valve (bistable) 0 up to 10 bar
1
Media: air – water – gases – liquid
Pressure range: 0 to 10 Bar max
Media temperature: -15°C +100°C max
Ambient temperature: -15°C to +50°C
Media viscosity: 500 centistokes max
Duty cycle: 100,000
Mounting: Any
Seals: PTFE
Actuated Ball Valve
1/2 – 1
STANDARD + FAILSAFE
2 WAY DIRECT
0 – 10 Bar
TYPE ABVM/AR
PRESSURE
Ø
Port
BSP
Orifice
mm
Operating
Time Seconds
Pressure Rating (Bar)
∆
P
Voltage Part Number
Min Max
1/2 15 5 0 10
9 to 24v AC or DC ABVM04S/9 + option
110 to 240vAC ABVM04S/2 + option
3/4 20 5 0 10
9 to 24v AC or DC ABVM06S/9 + option
110 to 240vAC ABVM06S/2 + option
1 25 5 0 10
9 to 24v AC or DC ABVM08S/9 + option
110 to 240vAC ABVM08S/2 + option
OPTIONS
Visual Position Indication, Failsafe Closed (+AR), Failsafe Open (+AR-NO)
Manual Over Ride (Lift + Turn +MO) 9-24 volt only.
3 wire control (power open and power closed)
Fully Open and fully closed position volt free feedback switches (+E2)
316 Stainless, 3 piece, 3 way & Brass Ball Valves or 1.5mtr lead wire or more
ELECTRICAL DATA
Voltage Min - Max
Continuous Duty 100%
Actuator
Power
Enclosure
Electrical
connections
Torque
Moving
Holding
9 to 24 volts AC 50/60Hz or DC
ABVM 2 Nm 5 Watts
0.22 Watts
IP67
0.5 meter lead
wires
110 to 240 volts AC 50/60Hz 0.6 Watts
CONSTRUCTION
Valve Body: 304 stainless steel static test pressure 35 Bar.
Seals: Stem FKM, Ball PTFE Floating no leakage design
ABVM Actuator: ABS Engineering Plastic, Gears: Metal, Function test 200 cycles Open/Close
OVERALL DIMENSIONS
Reference
Description
Material
1
Actuator
ABS
2
Body Cover
SS304
3
O Ring
FKM
4
Sealing
PTFE
5
Ball
SS304
6
Stem
SS304
7
O Ring
FKM
Requires 10-15 seconds (Out of the box) first Power On, thereafter a minimum 6-10 seconds power ON to recharge
the Farah capacitor reserve power.
Failsafe Control.
Power ON motor actuates valve into
powered position and then
automatically powers off.
Valve stays in powered position.
Power OFF motor actuates valve
back to start position using reserve
power.
Valve stays in start position.
With Position Fee
d Back Switches
3 Wire Control
Power ON to GREEN motor
actuates valve into powered position
and then automatically powers off.
Valve stays in powered position.
Power OFF to GREEN motor
actuates valve back to start position
and then automatically powers off.
Valve stays in start position.
© Copyr
ight (ABVM-S 200618) whole or partial reproduction of this catalogue or page without written consent is strictly prohibited.
Port D1/D2
d
L1
L2
E1
H1
H2
Kg
1/2
15
63
14
25
83
17
0.4
3/4
20
72
17
31
87
20
0.5
1
25
81
18
38
95
24
0.6
Subject to Change
