SUPPLEMENTAL INSTRUCTIONS

Extension Spring Installation

This is a supplement to the Residential Garage

Door Instructions (referred to as the MANUAL).

It covers installation of extension springs (STEP

14 of the MANUAL). For all other information and

safety warnings concerning your garage door,

see the MANUAL. Read the information in both

manuals before beginning installation.

Please read and understand these instructions

completely before proceeding with the instal-

lation of extension springs. Carefully follow

these instructions to avoid personal injury or

property damage.

Use these instructions for extension springs only.

Your spring hardware should match the list shown

in Table EXT-1. If you are missing any spring

hardware, call the Consumer Services 800# found

on the front cover of the MANUAL.

WARNING

Extension spring doors must never be

operated without a properly installed spring

containment cable.

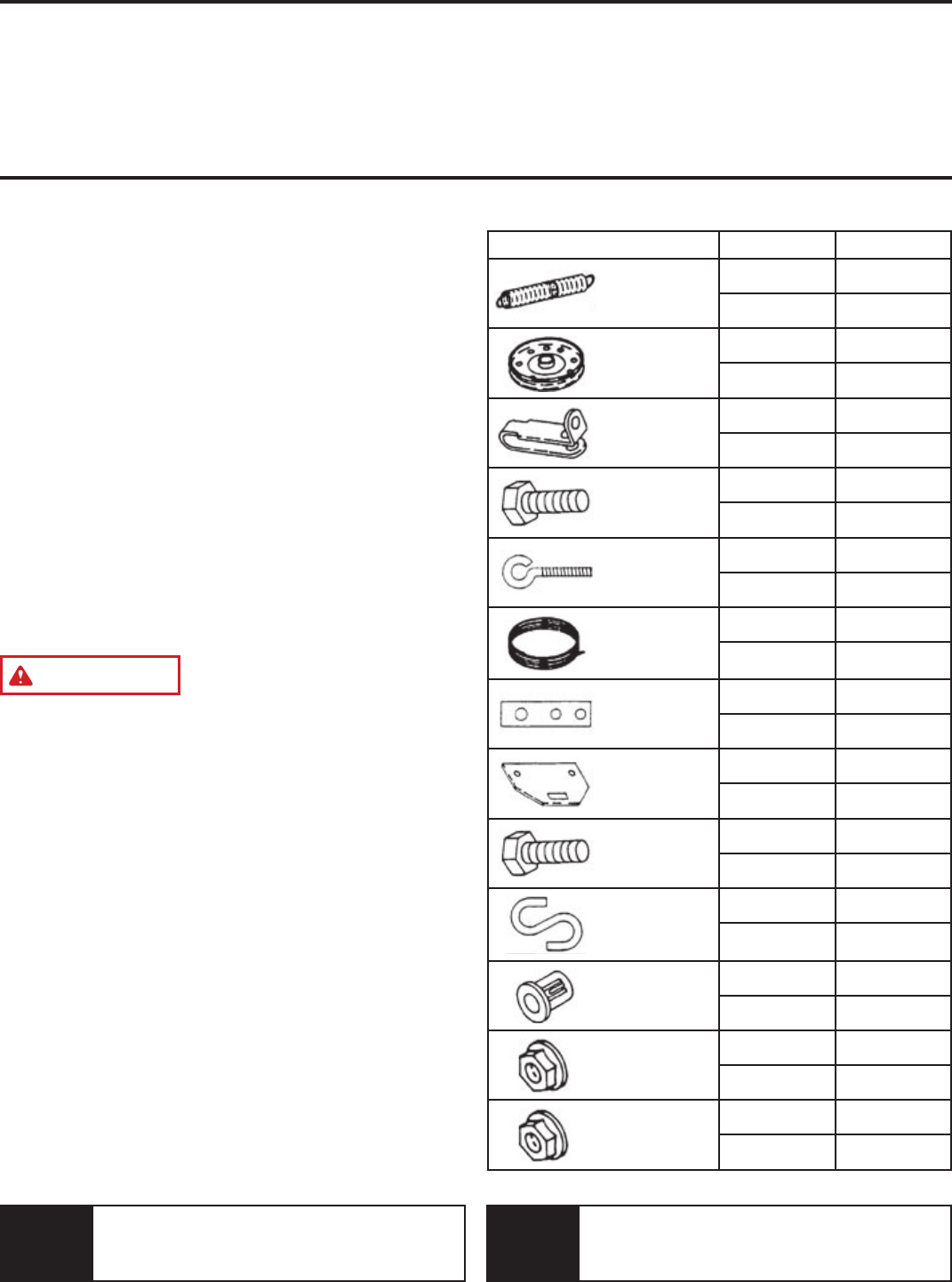

Table EXT-1

Description Door Size Qty.

Extension

Spring

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

2 or 4

Sheave

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

Sheave Fork

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

2 or 6

3/8" x 1-1/4"

Sheave Bolt

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

5/16" Eyebolt

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

2 or 4

Safety Spring

Containment Kit

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

2 or 4

(3) Hole

Adjustment Kit

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

Yoke Plate

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

0 or 2

5/16" Yoke Bolt

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

0 or 4

S-Hook

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W X 7' H

Black Bushing

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

2 or 4

5/16"

Flange Nut

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

4 or 8

3/8"

Flange Nut

Single Car Doors

8' – 9' W x 7' H

Double Car Doors

16' W x 7' H

La version française de ce supplément peut être accédée en ligne à l'adresse suivante :

http://www.clopaydoor.com/installation-manuals.aspx

Français

Se puede acceder a la versión en español del presente suplemento en la siguiente

dirección: http://www.clopaydoor.com/installation-manuals.aspx

Español

Summary of content (4 pages)

PAGE 1
SUPPLEMENTAL INSTRUCTIONS Extension Spring Installation This is a supplement to the Residential Garage Table EXT-1 Door Instructions (referred to as the MANUAL). Description It covers installation of extension springs (STEP 14 of the MANUAL). For all other information and Extension Spring safety warnings concerning your garage door, see the MANUAL. Read the information in both manuals before beginning installation.
PAGE 2
Assembling and Installing Extension Springs Step 1: Some doors will be supplied with two springs and some will have four. Assemble springs with sheaves on the floor. A 3/8" x 1-1/4" bolt and nut are used to attach the sheave. (Fig. EXT-1) NOTE: If your door was supplied with four large extension springs, take notice of the color coding on the ends of the springs. If there are two color codes, be sure to use one of each on either side so that the spring tension is equal on both sides.
PAGE 3
Step 5: Carefully raise the door to fully open position. Place C-clamps on both sides of the track below the bottom rollers to keep the door from falling closed. (Fig. EXT-5) Check again to be sure the horizontal tracks are parallel with the edges of the door. The rollers must not come out of the hinges or brackets. Step 6: Hook the ends of the springs over the eyebolts at the rear track hangers. Attach the loop of a cable over the button on the bottom bracket, if not done so already.
PAGE 4
Single Spring Assembly Containment Cable Angle Clip Wa r Ta ning g Plastic Bushing Containment Cable Wa r Ta ning g Double Spring Assembly 4" Sheave Mount Fig. EXT-9 Installing Safety Containment Kit WARNING Garage door extension springs can cause serious injury and property damage if they break under tension and are not secured with safety cables. Do not neglect the following step. Step 8: Tie one end of the 1/8" containment cable to the rear track hangers.
