Datasheet

8

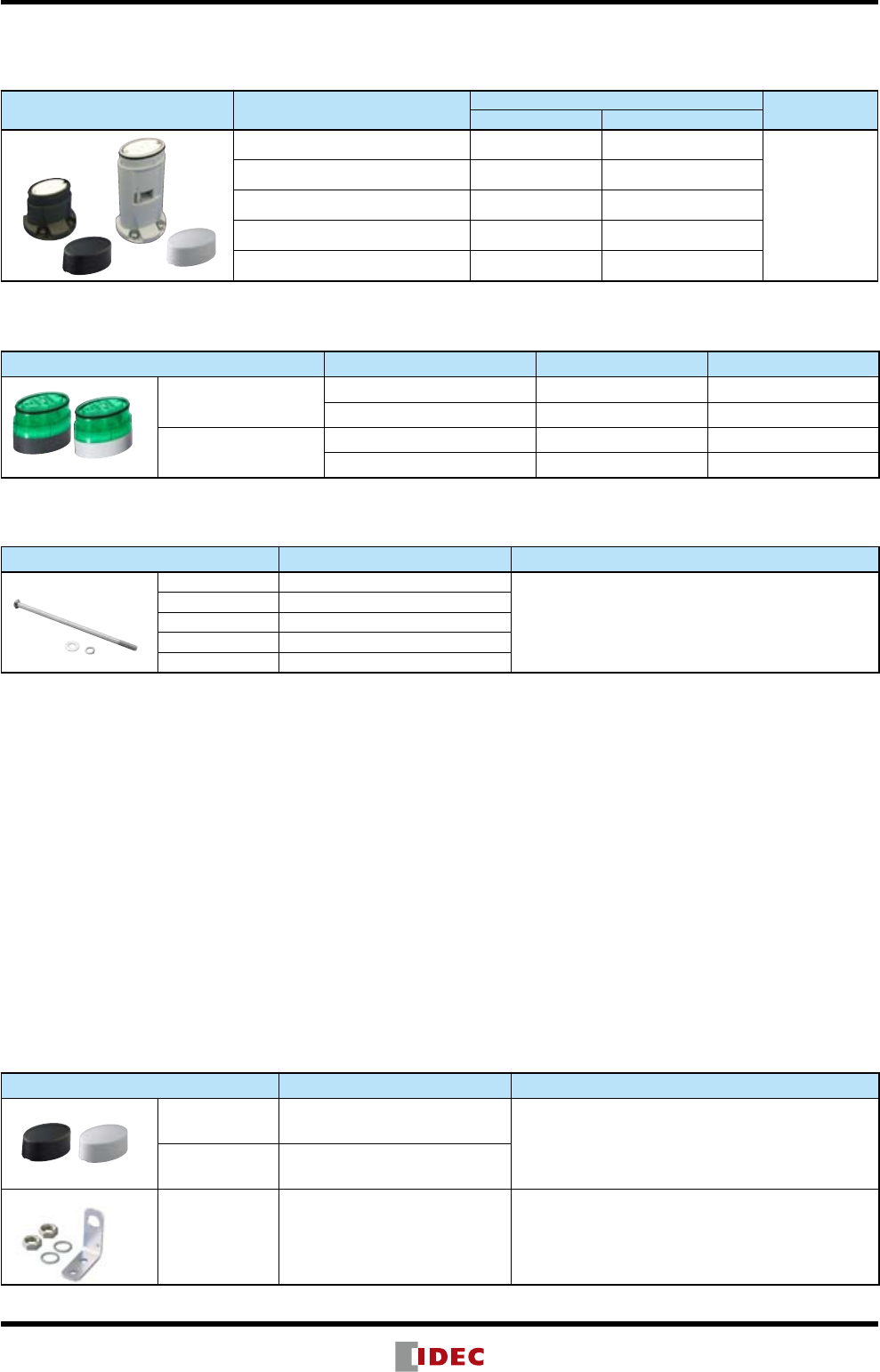

LD6A LED SignaLights
Sub-assembled Products
Base Module •
Package Quantity: 1
Description Mounting Style
Type No.
Remarks
Steady Steady/Flashing/Alarm
Frame Mount
LD6A-0GQ* LD6A-0GZQ*
A top cap is
supplied.
Wall Mount
LD6A-0WQ* LD6A-0WZQ*
Direct Mount
LD6A-0DQ* LD6A-0DZQ*
Pole Mount (with base) LD6A-0PQ* LD6A-0PZQ*
Pole Mount (with L-shaped bracket)
LD6A-0KQ* LD6A-0KZQ*
Specify a housing color code in place of • *: B (dark gray), W (light gray)
Do not supply power to the base module without connecting LED modules.•
LED Module •
Package Quantity: 1
Description Type No. LED Color Code Remarks
For dark gray housing
LD9Z-6ALB-
R, Y, S, G, W Color lens
LD9Z-6ALB-C
R, Y, S, G Clear lens
For light gray housing
LD9Z-6ALW-
R, Y, S, G, W Color lens
LD9Z-6ALW-C
R, Y, S, G Clear lens
Specify an LED color code in place of • : R (red), Y (yellow), S (blue), G (green), W (pure white)
When using pure white (W) with a clear lens, order LD9Z-6ALB-W (dark gray housing) or LD9Z-6ALW-W (light gray housing).•
Center Screw Set •
Description Type No. Remarks
1 tier LD9Z-6AC1
A plain washer and a spring washer are supplied.
2 tiers LD9Z-6AC2
3 tiers LD9Z-6AC3
4 tiers LD9Z-6AC4
5 tiers LD9Z-6AC5
Accessories
Description Type No. Remarks
Top Cap
For dark gray LD9Z-6ATB
A top cap is supplied with a base module.
For light gray LD9Z-6ATW
L-shaped Bracket
Metal
(chrome-plated)
LD9Z-6AK Two plain washers and two nuts are supplied.
Ordering Examples •
[Ex. 1] When ordering LD6A-3PQW-RYG as sub-assembled parts, specify the following parts:
Pole mount (with base), steady, light gray housing, 3 tiers, color lens LED modules with Red, Yellow, and Green LED
Base module (pole mount with base, steady, light gray housing) LD6A-0PQW 1 piece
LED module (red LED with color lens, light gray housing ) LD9Z-6ALW-R 1 piece
LED module (yellow LED with color lens, light gray housing) LD9Z-6ALW-Y 1 piece
LED module (green LED with color lens, light gray housing) LD9Z-6ALW-G 1 piece
Center screw set (3 tiers) LD9Z-6AC3 1 piece
[Ex. 2] When ordering LD6A-5WZQB-RYSGWC as sub-assembled parts, specify the following parts:
Wall mount, steady/ashing/alarm, dark gray housing, 5 tiers, clear lens LED modules with Red, Yellow, Blue,
Green, and Pure white LED
Base module (wall mount, steady/ashing/alarm, dark gray housing) LD6A-0WZQB 1 piece
LED module (red LED with clear lens, dark gray housing) LD9Z-6ALB-RC 1 piece
LED module (yellow LED with clear lens, dark gray housing) LD9Z-6ALB-YC 1 piece
LED module (blue LED with clear lens, dark gray housing) LD9Z-6ALB-SC 1 piece
LED module (green LED with clear lens, dark gray housing) LD9Z-6ALB-GC 1 piece
LED module (pure white LED with clear lens, dark gray housing) LD9Z-6ALB-W 1 piece
Center screw set (5 tiers) LD9Z-6AC5 1 piece
(091218)
