3.7 AT/ATX Mode Selection
AT and ATX power modes can both be used on the AFOLUX LX series. The selection is
made through an AT/ATX switch on the aluminum chassis inside the plastic back cover
(
Figure 3-9). To select AT mode or ATX mode, follow the steps below.
Step 1: Remove the plastic back cover. See Section
3.5 above.
Step 2: Locate the AT/ATX switch on the aluminum chassis (
Figure 3-9).

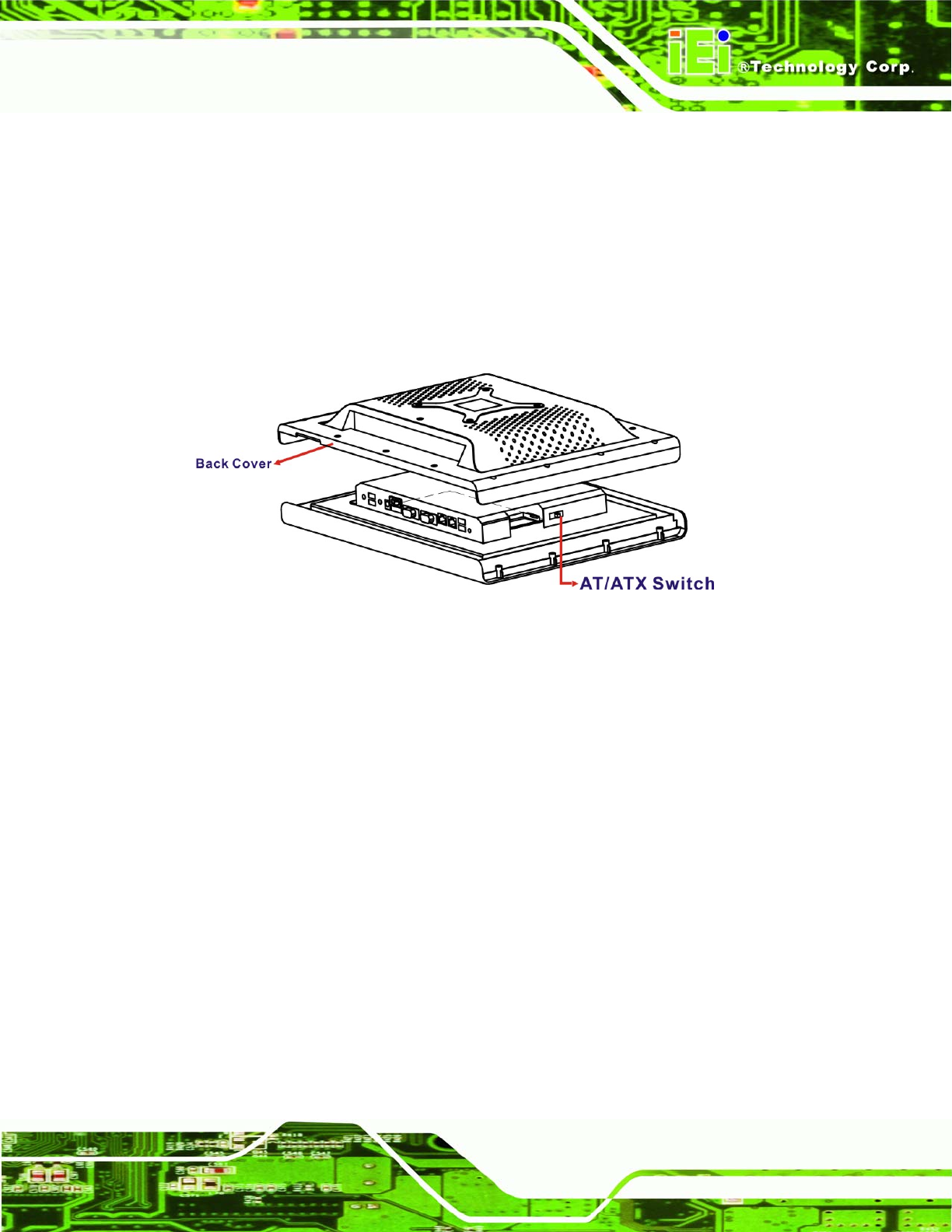

Figure 3-9: AT/ATX Switch Location
Step 3: Adjust the AT/ATX switch. Step 0:
3.7.1 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The AFOLUX LX panel PC turns on automatically when the power is
connected. The AT mode benefits a production line to control multiple panel PCs from a
central management center and other applications including:
 ATM
 Self-service kiosk
 Plant environment monitoring system
 Factory automation platform
 Manufacturing shop flow
