4.3.2 AFL-08A-LX Internal Aluminum Cover Removal
Step 1: Remove the four retention screws (Figure 4-3).

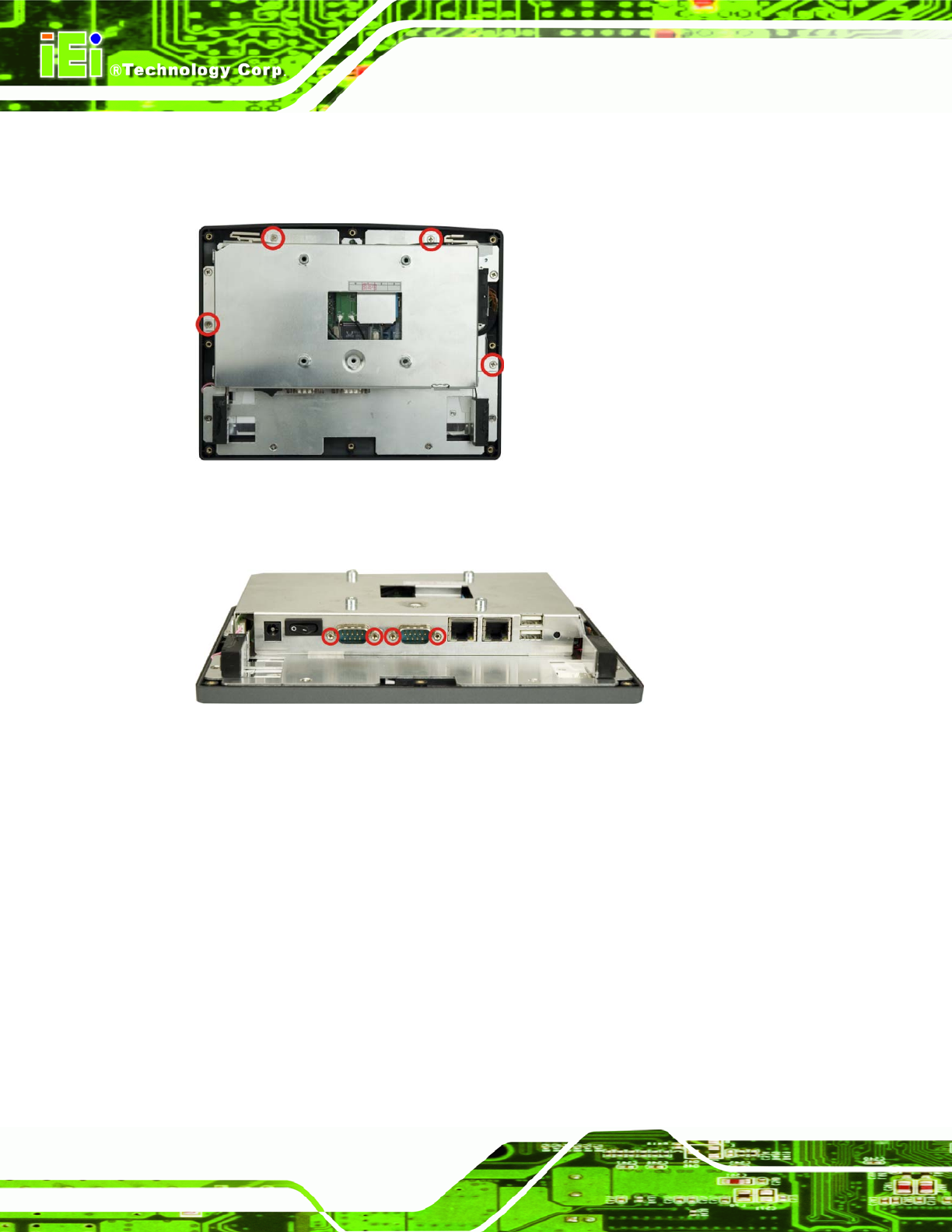

Figure 4-3: AFL-08A-LX Aluminum Back Cover Retention Screws
Step 2: Remove the four hexagonal pillars on the bottom panel (
Figure 4-4).
Figure 4-4: Four Hexagonal Pillars on the Bottom Panel (AFL-08A-LX)
Step 3: Detach the tapes securing the wireless module cables on the chassis (
Figure
4-5).
Step 4: Carefully cross the wireless module cables over the screw holes of the
aluminum cover (
Figure 4-5).
