AFL-xxA-N26 Series Panel PC
Page 66

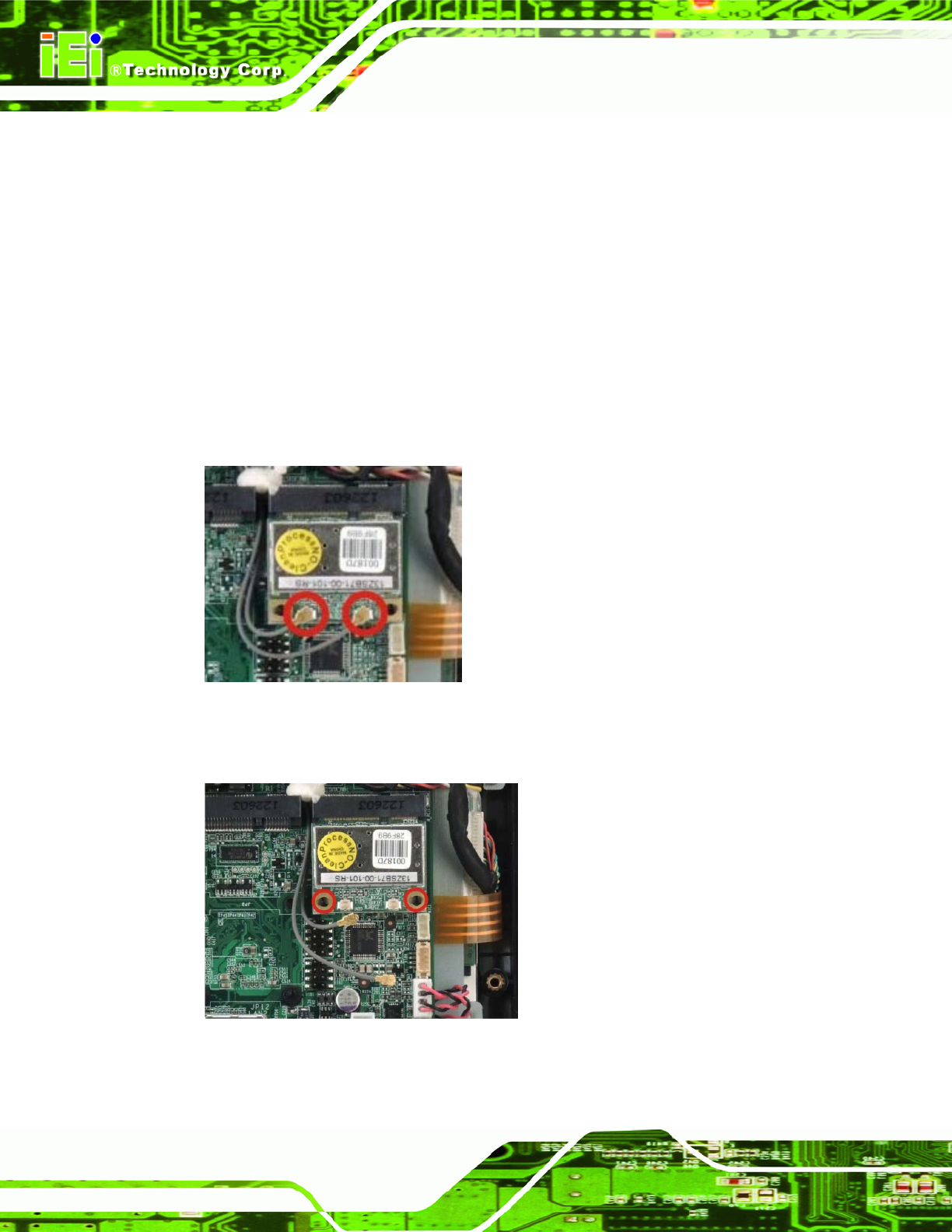

4.5.2 WLAN Module Replacement
The AFOLUX AFL-xxA-N26 series is pre-installed one PCIe Mini wireless module. To
replace the wireless module, follow the instructions below.
Step 1: Follow all anti-static procedures. See Section
4.2.
Step 2: Turn off the power. See Section
4.3.
Step 3: Remove the back cover and the internal aluminum back cover. See Section
3.4.
Step 4: Locate the WLAN module.
Step 5: Disconnect the antennas on the WLAN module (
Figure 4-3).
Figure 4-3: Removing the Antennas
Step 6: Push the two spring clips in to release the WLAN module.
Figure 4-4: Releasing the WLAN Card
Step 7: Grasp the WLAN module by the edges and carefully pull it out of the socket.
