6.3.1 CPU Configuration
Use the CPU Configuration menu (9BIOS Menu 3) to view detailed CPU specifications
and configure the CPU.

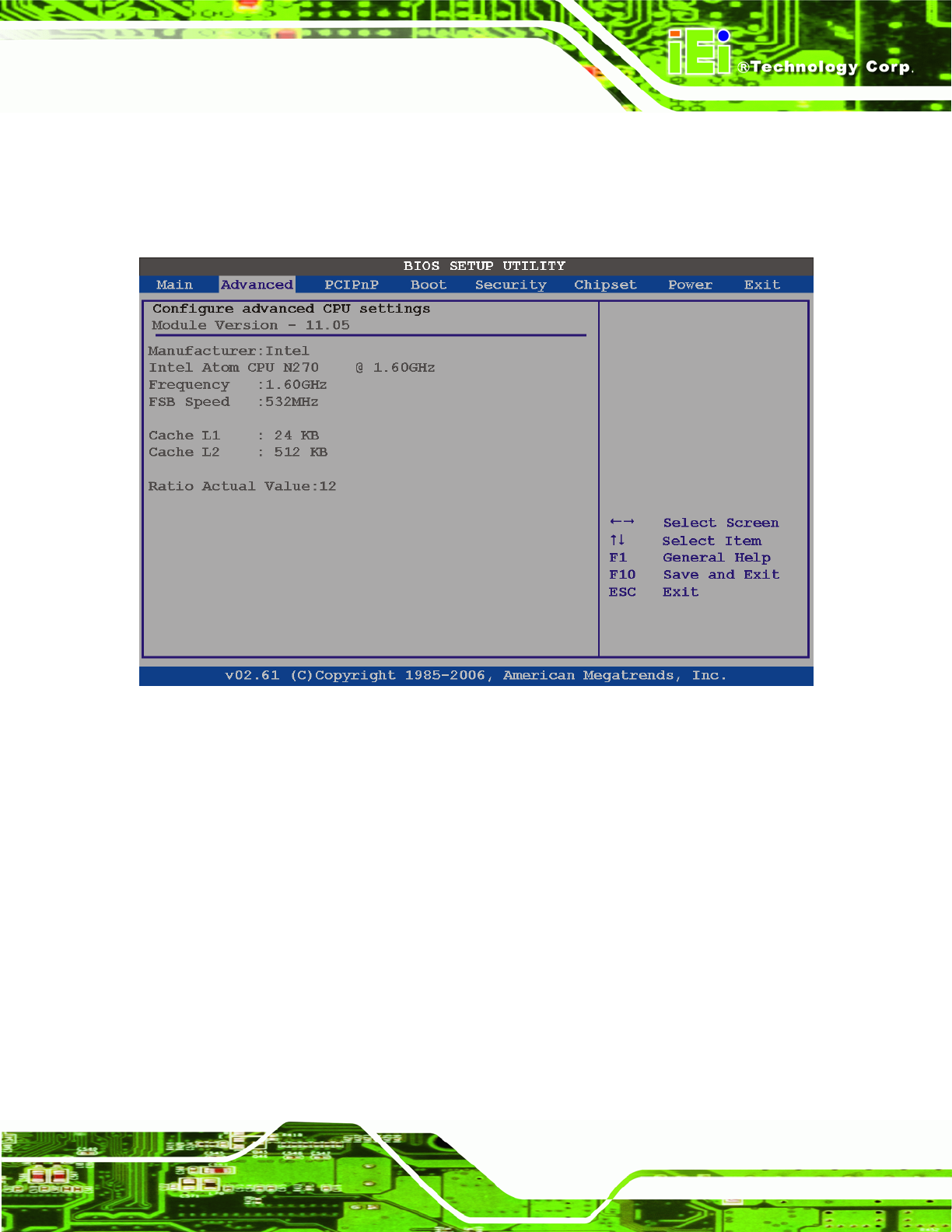

BIOS Menu 3: CPU Configuration
The CPU Configuration menu (
9BIOS Menu 3) lists the following CPU details:
Manufacturer: Lists the name of the CPU manufacturer
Brand String: Lists the brand name of the CPU being used
Frequency: Lists the CPU processing speed
FSB Speed: Lists the FSB speed
Cache L1: Lists the CPU L1 cache size
Cache L2: Lists the CPU L2 cache size
