7.6 Audio Driver Installation
To install the chipset driver, please do the following.
Step 1: Access the driver list shown in
Figure 7-3. (See Section 7.2)
Step 2: Click “4-Audio”
Step 3: Click “1-AC’97”
Step 4: Browse to “E:\4-Audio\Windows\Windows 98Gold, 98se, Me, 2000, XP,
2003(32,64 bits)\A3.84” Double-click the installation file in
Figure 7-20.

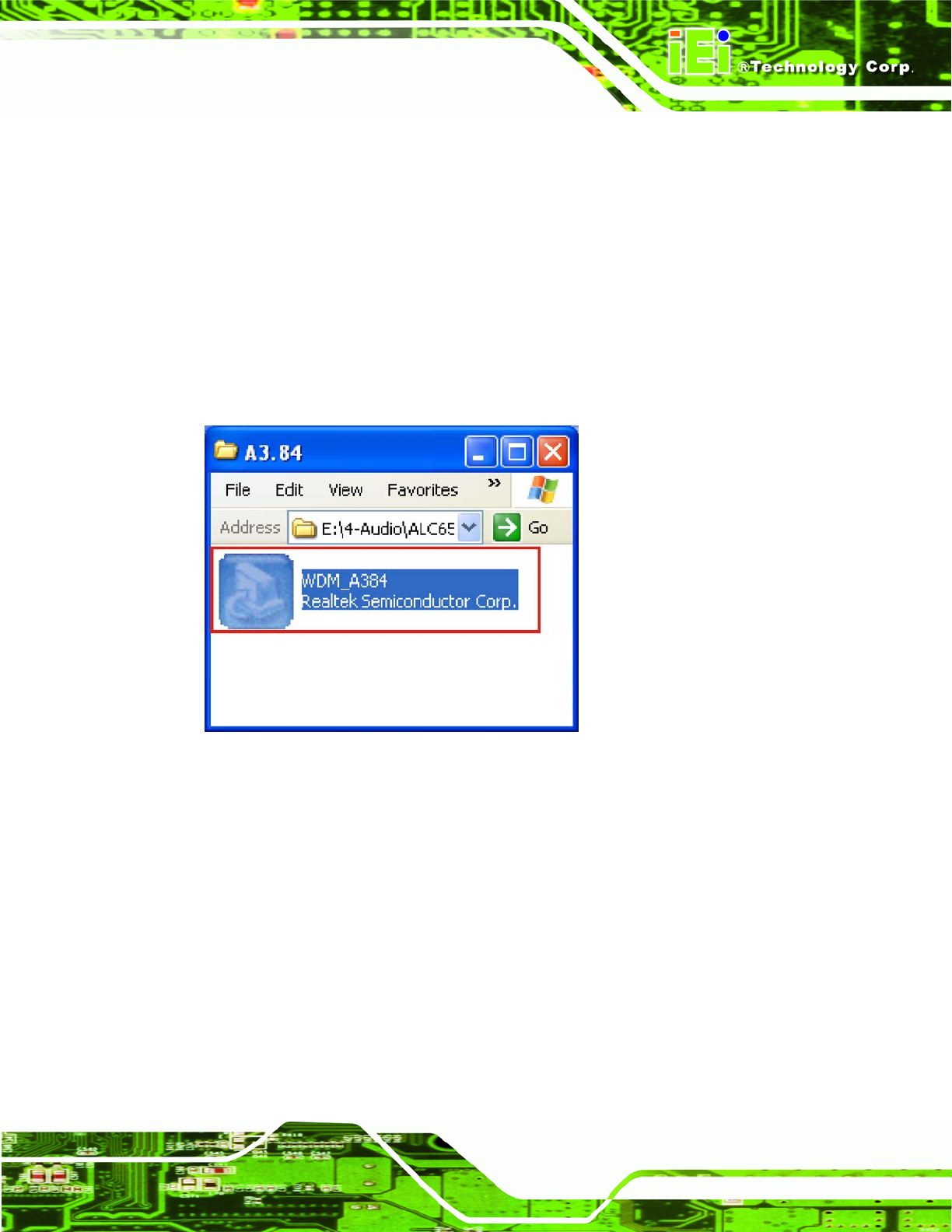

Figure 7-20: Audio Driver Options
