eKINO-945GSE Motherboard
Page 52
4.2.19 SO-DIMM Socket
CN Label: DIMM1
CN Type:
DDR2 SO-DIMM socket
CN Location:
See
Figure 4-20
The digital input/output connector is managed through a Super I/O chip. The DIO
connector pins are user programmable.

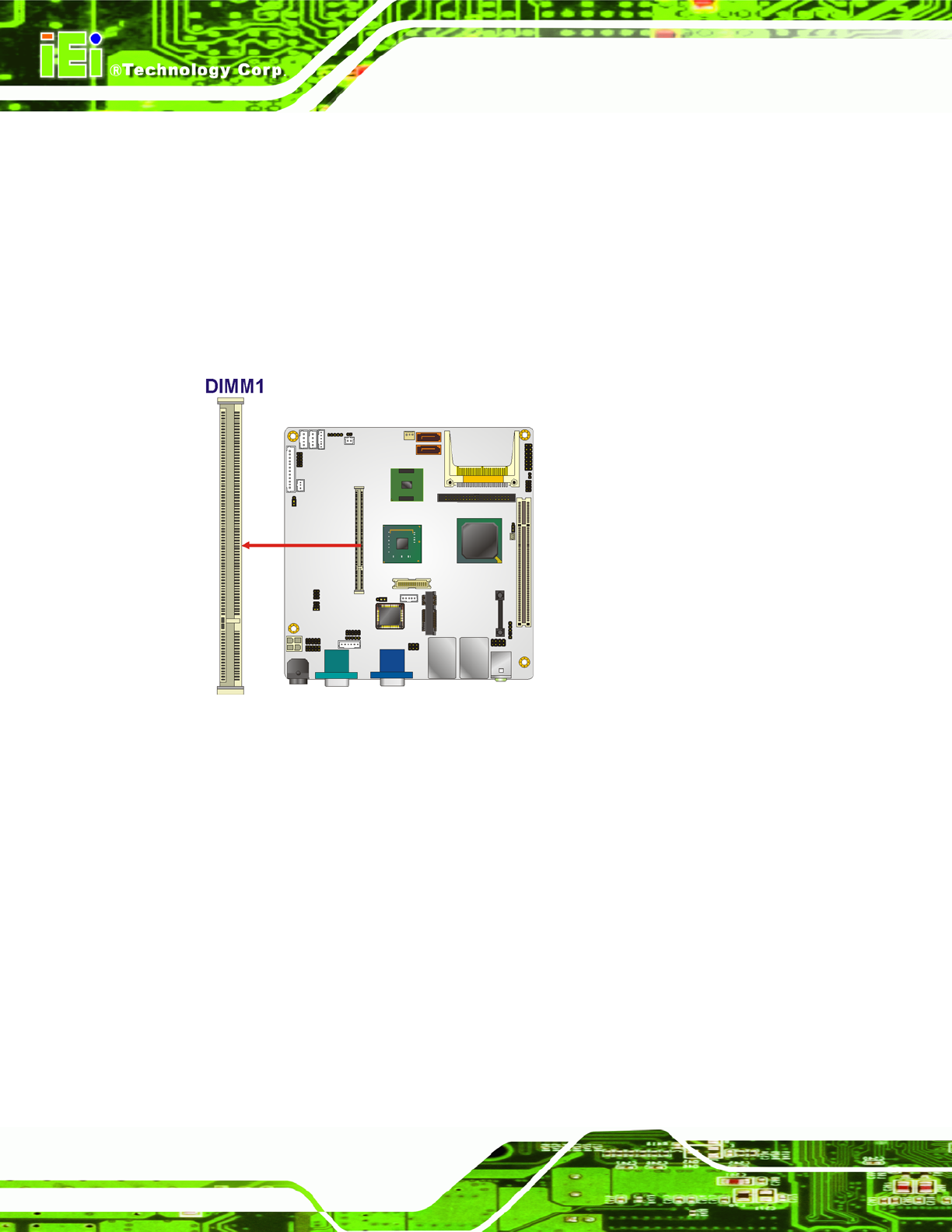

Figure 4-20: SO-DIMM Location
4.2.20 SPDIF Connector
CN Label: SPDIF1
CN Type:
5-pin header
CN Location:
See Figure 4-21
CN Pinouts:
See Table 4-17
Use the SPDIF connector to connect digital audio devices to the system.
