eKINO-945GSE Motherboard
Page 56

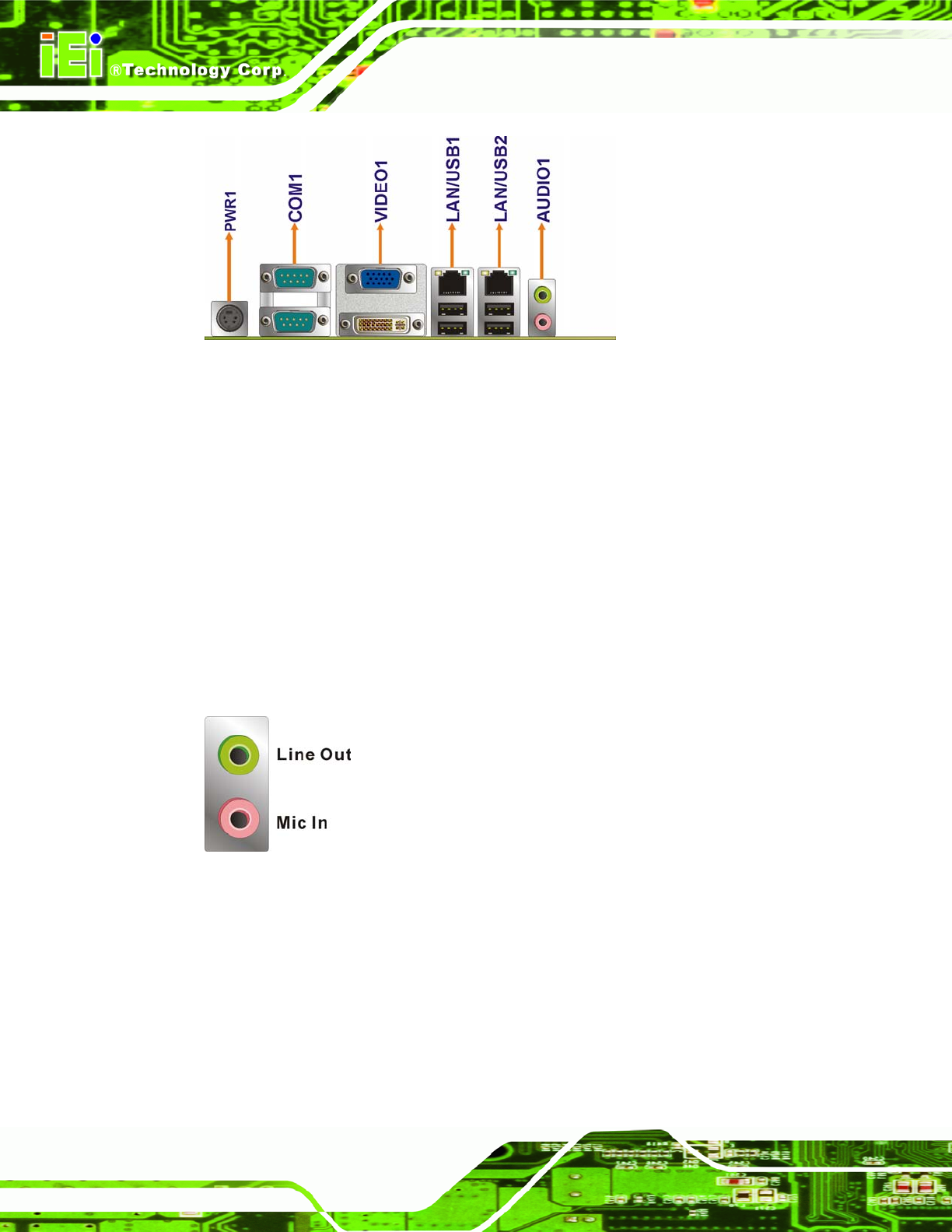

Figure 4-24: eKINO-945GSE External Peripheral Interface Connector
4.3.1 Audio Connector
CN Label: AUDIO1
CN Type:
2 x audio jacks
CN Location:
See
Figure 4-24
The two audio jacks connect to external audio devices as specified below.
Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.
Figure 4-25: Audio Connector
4.3.2 DVI Connector
CN Label: VIDEO1 (bottom)
CN Type:
DVI connector
CN Location:
See
Figure 4-24
CN Pinouts:
See
Table 4-20
