eKINO-945GSE Motherboard
Page 58
Pin Description Pin Description
4 MDIA1- 8 MDIA0+
Table 4-21: LAN Pinouts

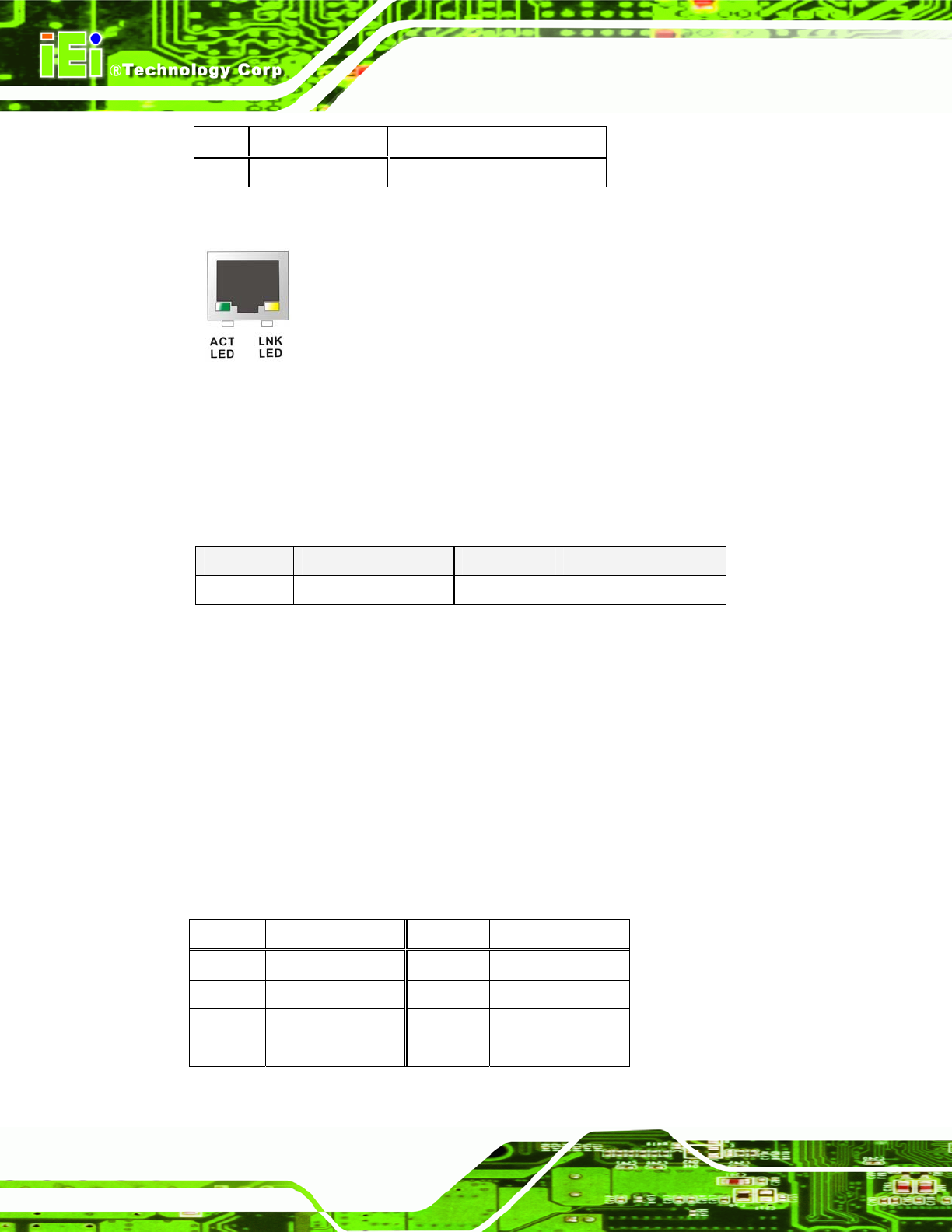

Figure 4-26: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
8Table 4-22.
Status Description Status Description
Green Activity Yellow Linked
Table 4-22: RJ-45 Ethernet Connector LEDs
4.3.4 Serial Port Connectors
CN Label: COM1 (top) and COM2 (bottom)
CN Type:
DB-9 connectors
CN Location:
See
Figure 4-24
CN Pinouts:
See
Table 4-23 and Figure 4-27
The serial port connectors connect to RS-232 communications devices.
Pin No. Description Pin No. Description
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 RI
