IMBA-Q670 ATX Motherboard
Page 130

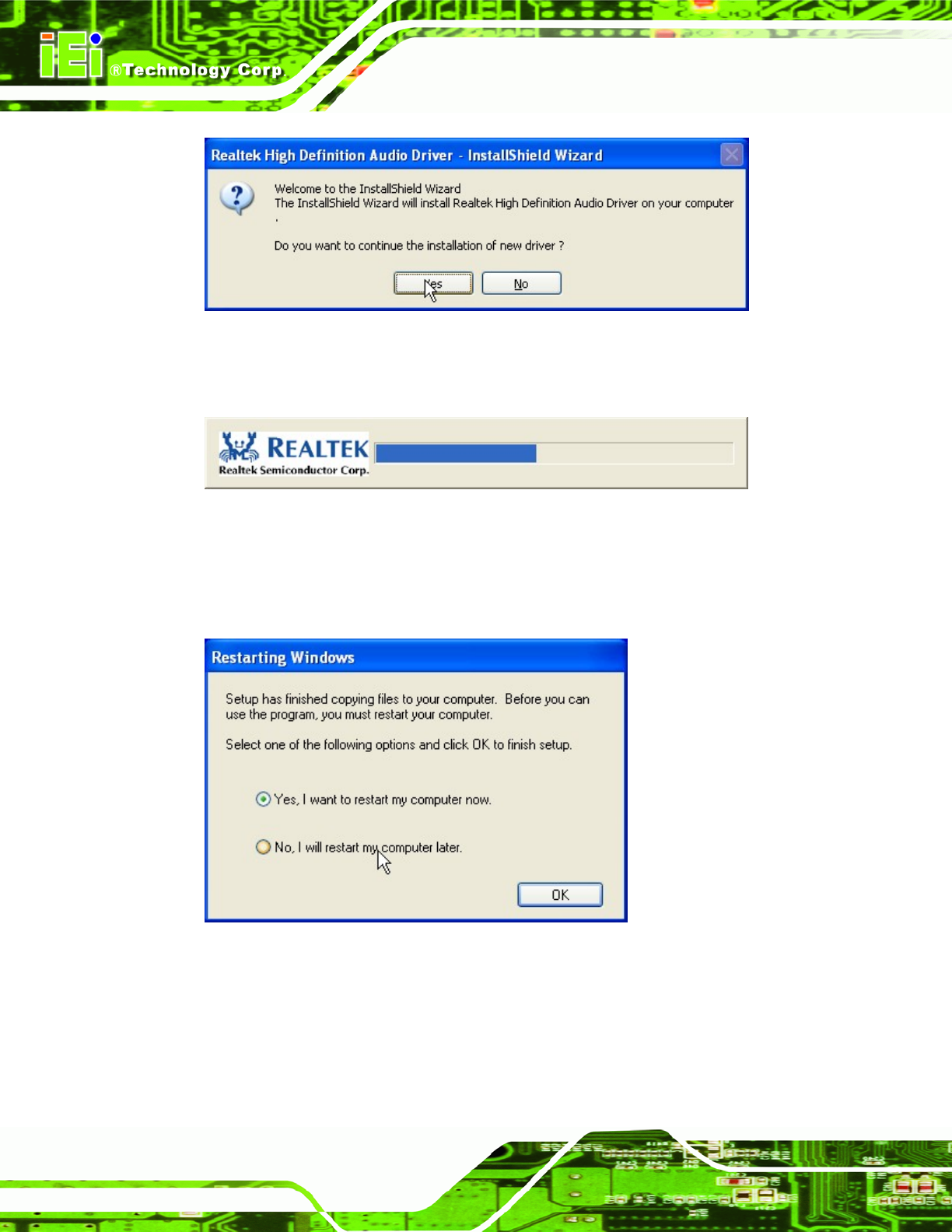

Figure 6-20: Audio Driver Welcome Screen
Step 7: The audio driver installation begins. See
Figure 6-21.
Figure 6-21: Audio Driver Installation
Step 8: When the installation is complete, the screen in
Figure 6-22 appears.
Step 9: Select “Yes, I want to restart my computer now” and click Finish. Step 0:
Figure 6-22: Audio Driver Installation Complete
