IMBA-Q670 ATX Motherboard
Page 2
1.1 Introduction

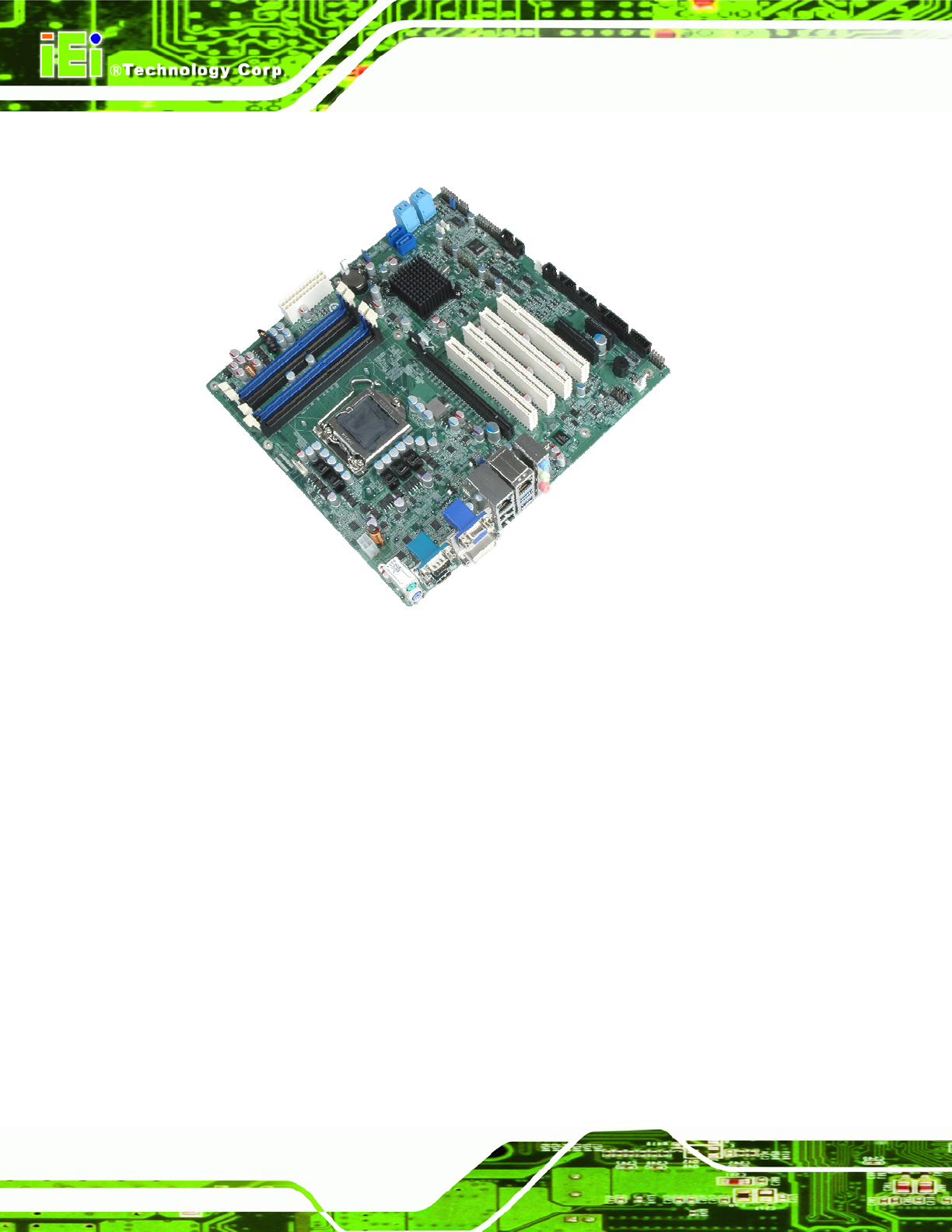

Figure 1-1: IMBA-Q670
The IMBA-Q670 is an ATX motherboard. It accepts a Socket LGA1155 Intel® Core™
i3/i5/i7 processor and supports four 240-pin 1333/1066 MHz dual-channel DDR3 DIMM
modules up to 16.0 GB maximum. The IMBA-Q670 includes a VGA, HDMI, and DVI-D
port. Expansion and I/O include four PCI card slots, one PCIe x16 card slot, one PCIe x4
card slot, one PCIe x1 slot, two USB 3.0 ports on the rear panel by NEC D720200F1, four
USB 2.0 by rear panel, eight USB 2.0 by pin header, four SATA 3Gb/s connectors, two
SATA 6Gb/s connectors, six COM ports, and two keyboard/mouse connectors.
1.2 Benefits
Some of the IMBA-Q670 motherboard benefits include:
Powerful graphics with multiple monitors
Staying connected with both wired LAN connections
Speedy running of multiple programs and applications
