IMBA-Q670 ATX Motherboard
Page 166
Step 1: Follow the steps described in Section B.2.1 ~ Section B.2.3 to setup BIOS,
create partitions and install operating system.
Step 2: Install the auto recovery utility into the system by double clicking the
Utility/AUTORECOVERY-SETUP.exe in the One Key Recovery CD. This utility
MUST be installed in the system, otherwise, the system will automatically
restore from the factory default image every ten (10) minutes.

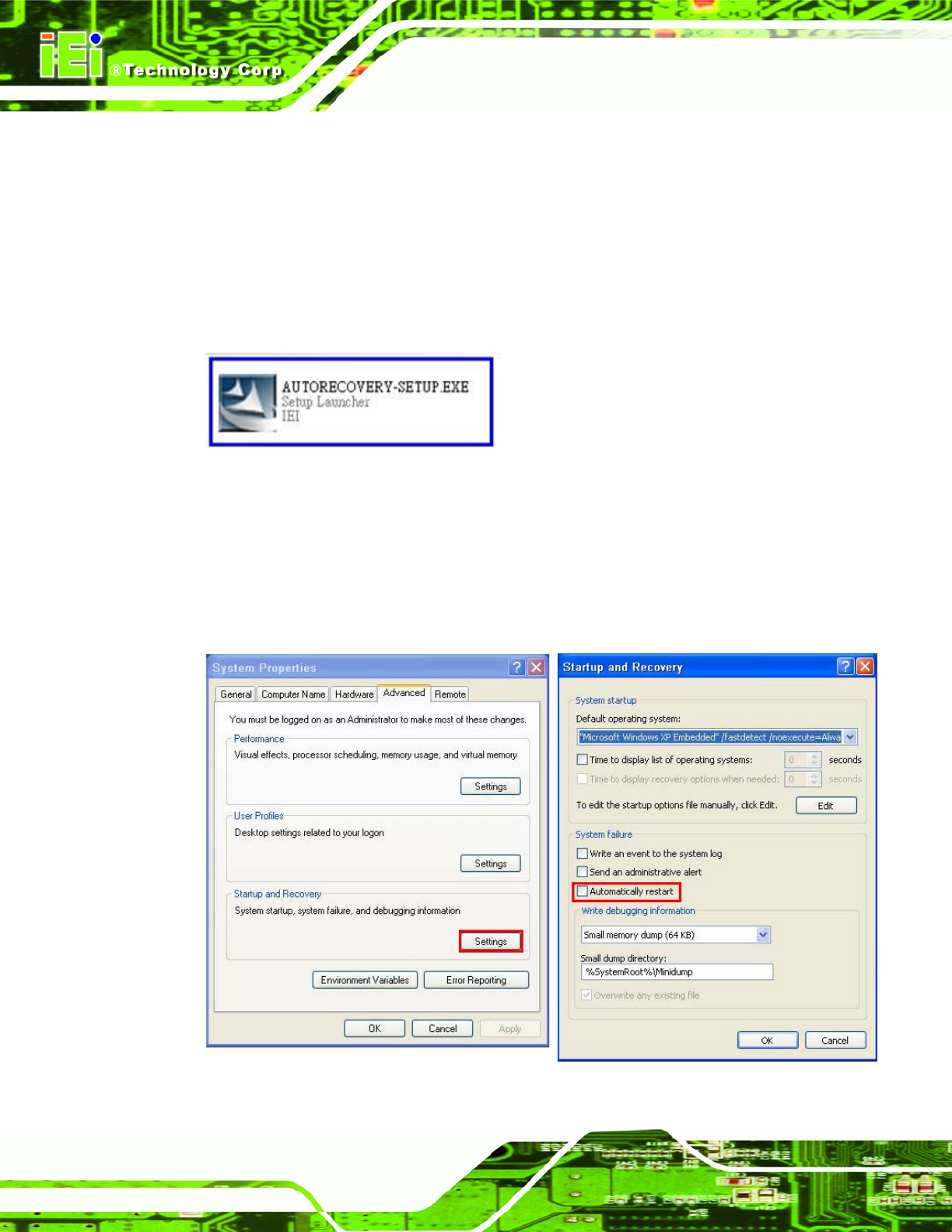

Figure B-22: Auto Recovery Utility
Step 3: Disable the automatically restart function before creating the factory
default image. Go to: My Computer Æ Properties Æ Advanced. Click the
Settings button of Startup and Recovery. Deselect “Automatically restart”. Click
OK to save the settings and exit. (See
Figure B-23)
Figure B-23: Disable Automatically Restart
