IMBA-Q670 ATX Motherboard
Page 179

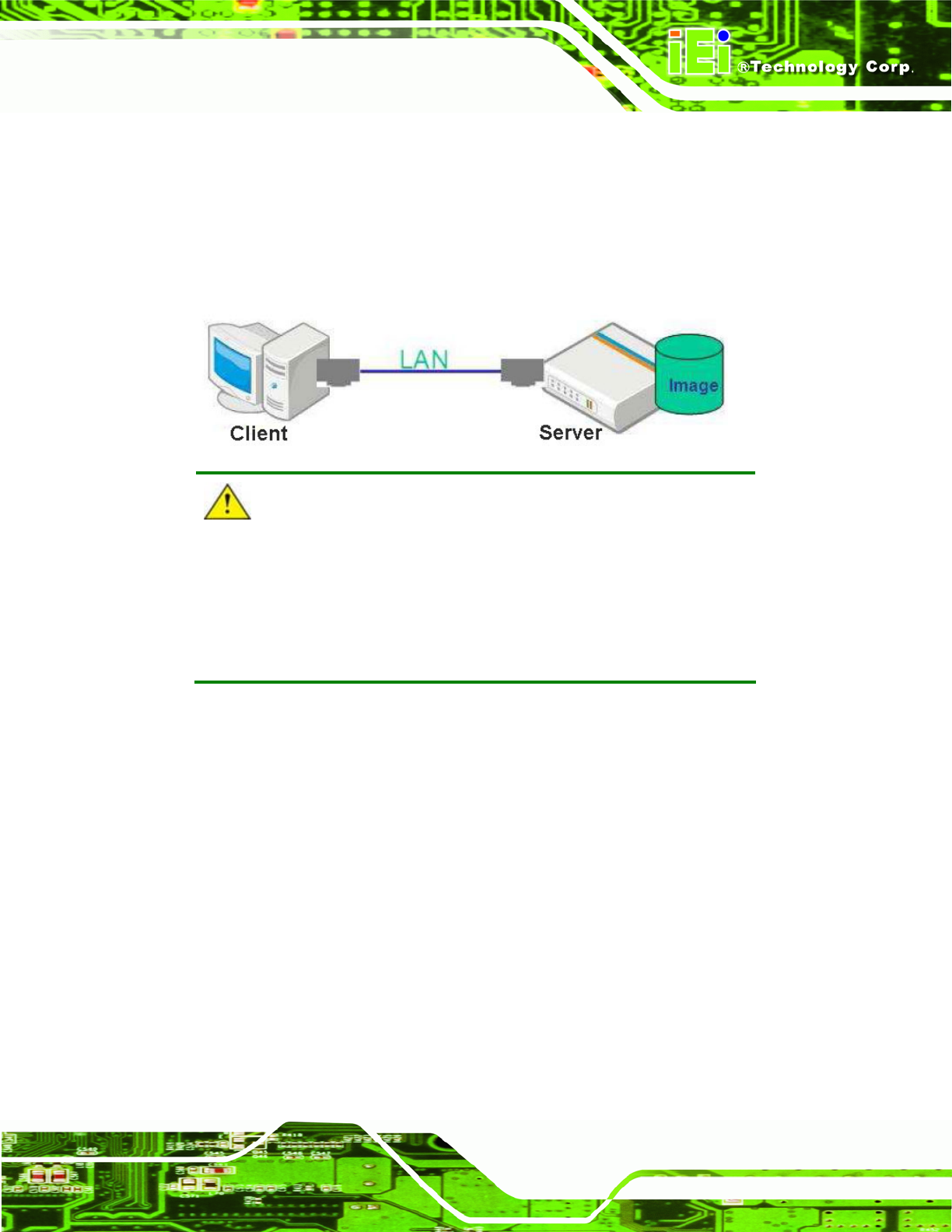

B.6 Restore Systems from a Linux Server through LAN
The One Key Recovery allows a client system to automatically restore to a factory default
image saved in a Linux system (the server) through LAN connectivity after encountering a
Blue Screen of Death (BSoD) or a hang for around 10 minutes. To be able to use this
function, the client system and the Linux system MUST reside in the same domain.
CAUTION:
The supported client OS includes:
Windows 2000 Windows 7
Windows XP Windows XP Embedded
Windows Vista Windows Embedded Standard 7
Prior to restoring client systems from a Linux server, a few setup procedures are required.
Step 1: Configure DHCP server settings
Step 2: Configure TFTP settings
Step 3: Configure One Key Recovery server settings
Step 4: Start DHCP, TFTP and HTTP
Step 5: Create a shared directory
Step 6: Setup a client system for auto recovery
The detailed descriptions are described in the following sections. In this document, two
types of Linux OS are used as examples to explain the configuration process – CentOS
5.5 (Kernel 2.6.18) and Debian 5.0.7 (Kernel 2.6.26).
