IMBA-Q670 ATX Motherboard
Page 182

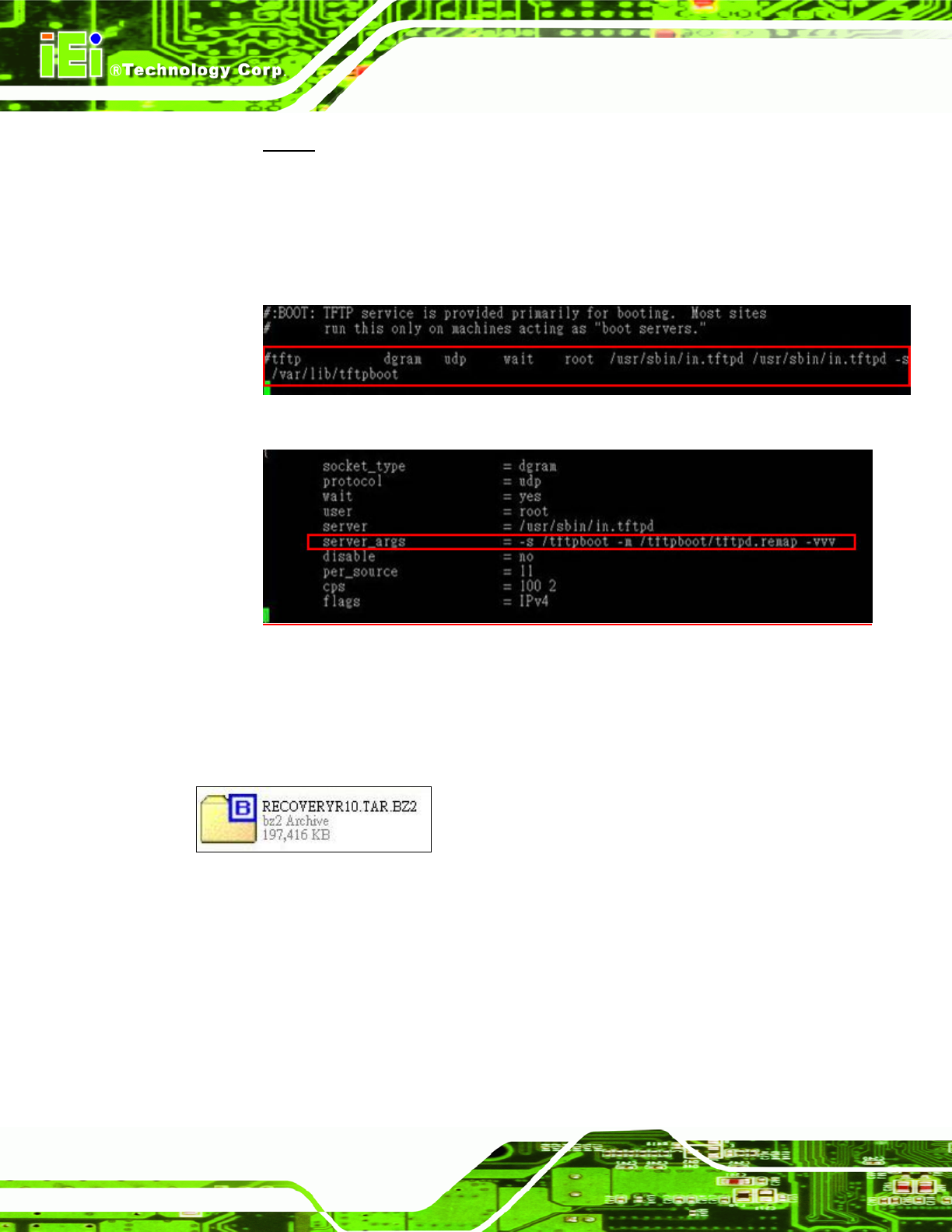

Debian
Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by
adding “#”.
#vi /etc/inetd.conf
Modify: #tftp dgram udp wait root /usr/sbin....... (as shown below)
#vi /etc/xinetd.d/tftp
B.6.3 Configure One Key Recovery Server Settings
Step 1: Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key
Recovery CD to the system (server side).
Step 2: Extract the recovery package to /.
#cp RecoveryR10.tar.bz2 /
#cd /
#tar –xvjf RecoveryR10.tar.bz2
Step 3: Copy “pxelinux.0” from “syslinux” and install to “/tftboot”.
#cp /usr/lib/syslinux/pxelinux.0 /tftpboot/
