IMBA-Q670 ATX Motherboard
Page 184

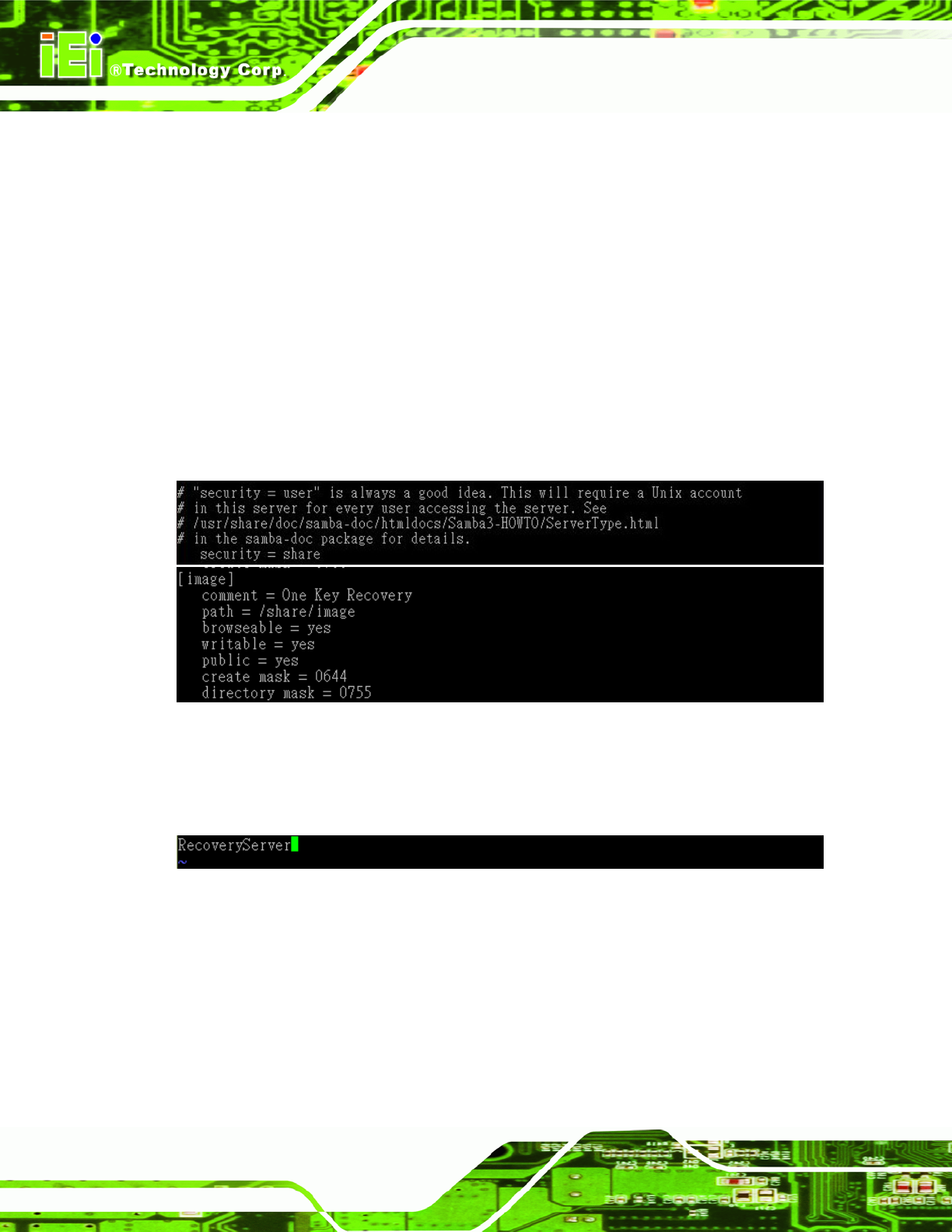

Modify:
[image]
comment = One Key Recovery
path = /share/image
browseable = yes
writable = yes
public = yes
create mask = 0644
directory mask = 0755
Step 4: Edit “/etc/samba/smb.conf” for your environment. For example:
Step 5: Modify the hostname
#vi /etc/hostname
Modify: RecoveryServer
B.6.6 Setup a Client System for Auto Recovery
Step 1: Disable the automatically restart function before creating the factory
default image. Go to: My Computer Æ Properties Æ Advanced. Click the
Settings button of Startup and Recovery. Deselect “Automatically restart”. Click
OK to save the settings and exit. (See
Figure B-23)
