IMBA-Q670 ATX Motherboard
Page 185

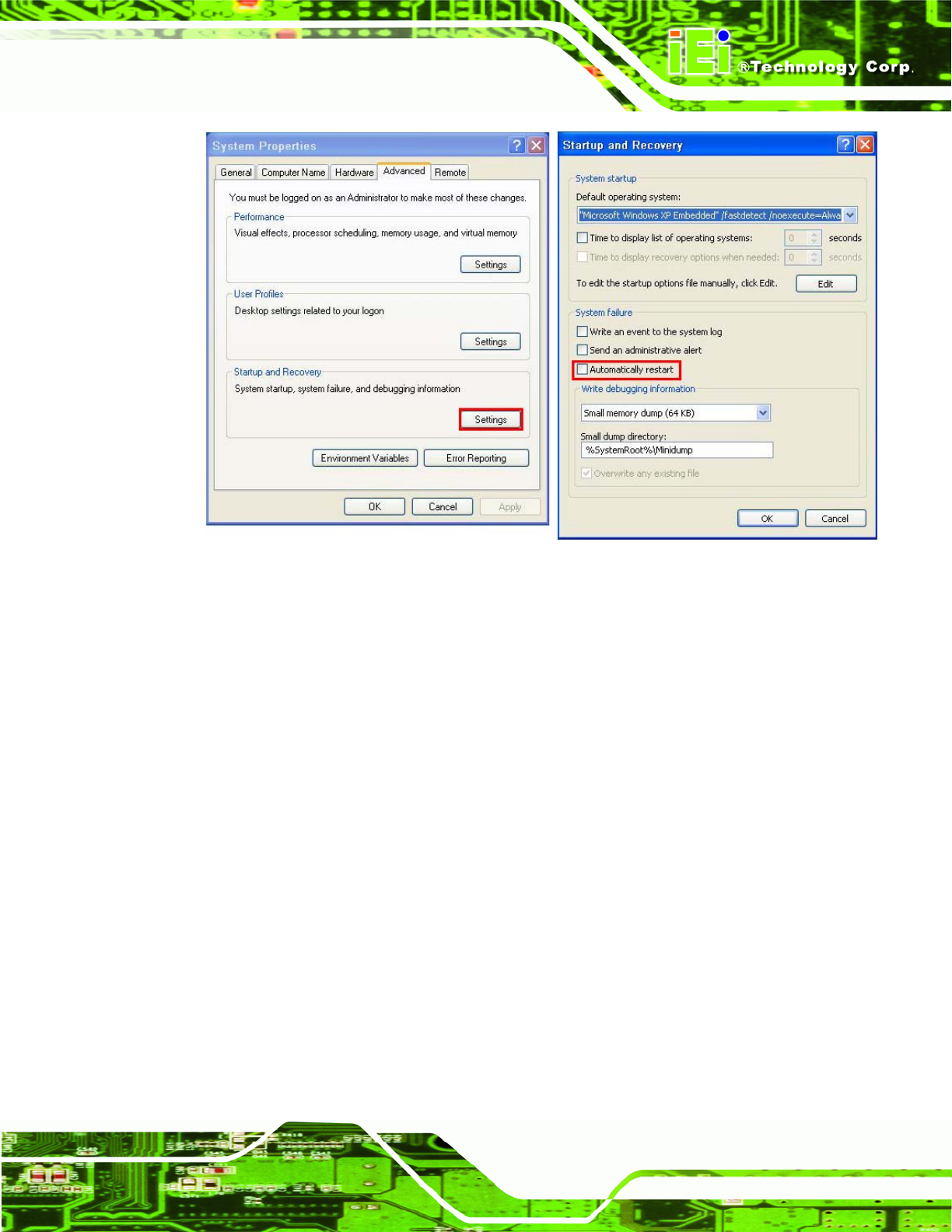

Figure B-42: Disable Automatically Restart
Step 2: Configure the following BIOS options of the client system.
Advanced → iEi Feature → Auto Recovery Function → Enabled
Advanced → iEi Feature → Recover from PXE → Enabled
Boot → Launch PXE OpROM → Enabled
Step 3: Continue to configure the Boot Option Priorities BIOS option of the client
system:
Boot Option #1 Æ remain the default setting to boot from the original OS.
Boot Option #2 Æ select the boot from LAN option.
Step 4: Save changes and exit BIOS menu.
Exit Æ Save Changes and Exit
Step 5: Install the auto recovery utility into the system by double clicking the
Utility/AUTORECOVERY-SETUP.exe in the One Key Recovery CD. This utility
