Instruction Manual

IMBA-Q670 ATX Motherboard
Page 32
3.2.15 PCIe x4 Slot
CN Label: PCIEX4_2
CN Type:
PCIe x4 slot
CN Location:
See
Figure 3-18
The PCIe x4 slot is for PCIe x4 expansion cards.

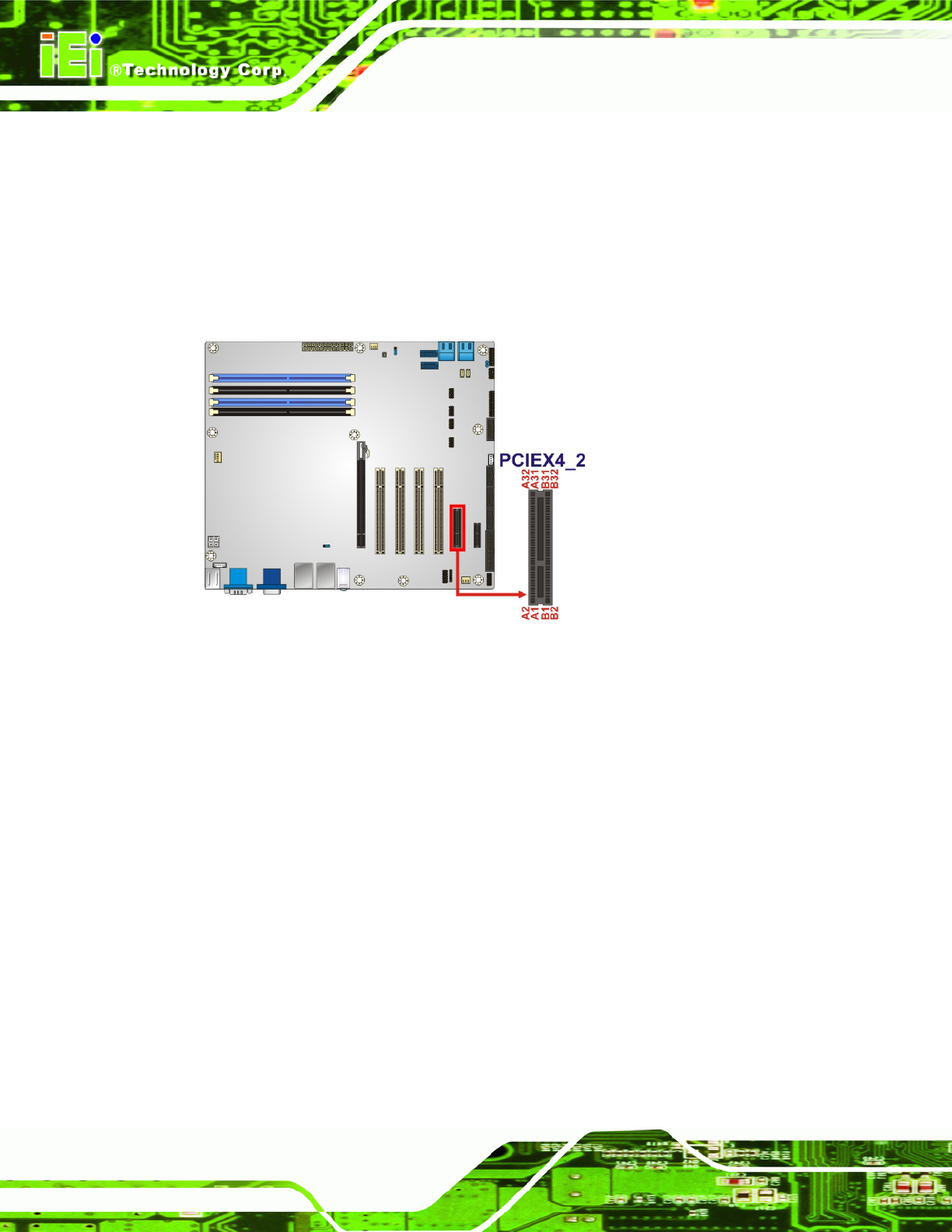

Figure 3-16: PCIe x4 Slot Location
3.2.16 PCIe x16 Slot
CN Label: PCIEX16_1
CN Type:
PCIe x16 slot
CN Location:
See
Figure 3-17
The PCIe x16 expansion cards slot is for PCIe x16 expansion cards.
