IMBA-Q670 ATX Motherboard
Page 43
3.3.1 Audio Connector
CN Label: AUDIO_CV1
CN Type:
Audio jack
CN Location:
See Figure 3-27
The audio jacks connect to external audio devices.
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.

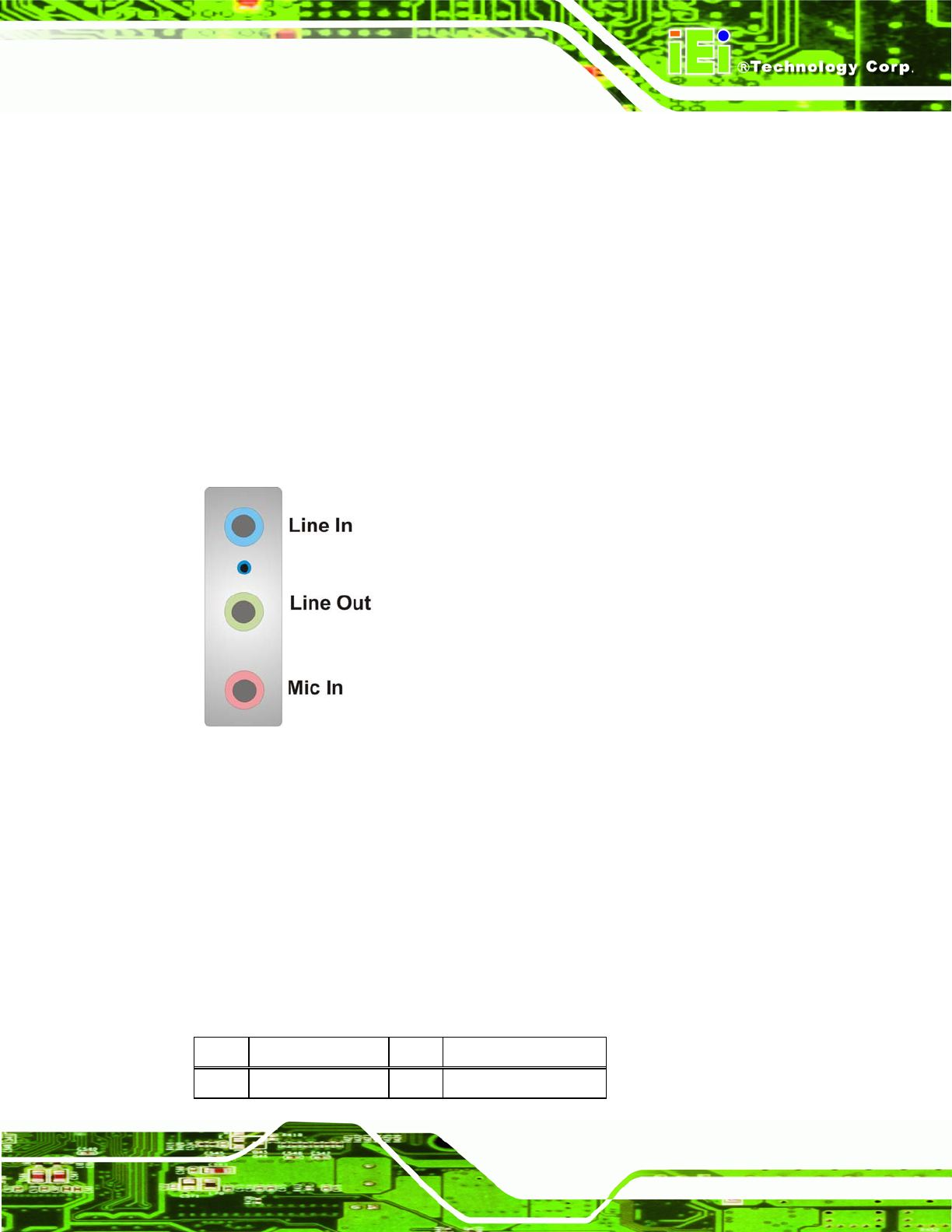

Figure 3-28: Audio Connector
3.3.2 Ethernet and USB Connector
CN Label: LAN1_USB01, LAN2_USB23
CN Type:
RJ-45, USB 2.0 and USB 3.0 connectors
CN Location:
See Figure 3-27
CN Pinouts:
See Table 3-23
The LAN connector connects to a local network.
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 2 MDIA3+
